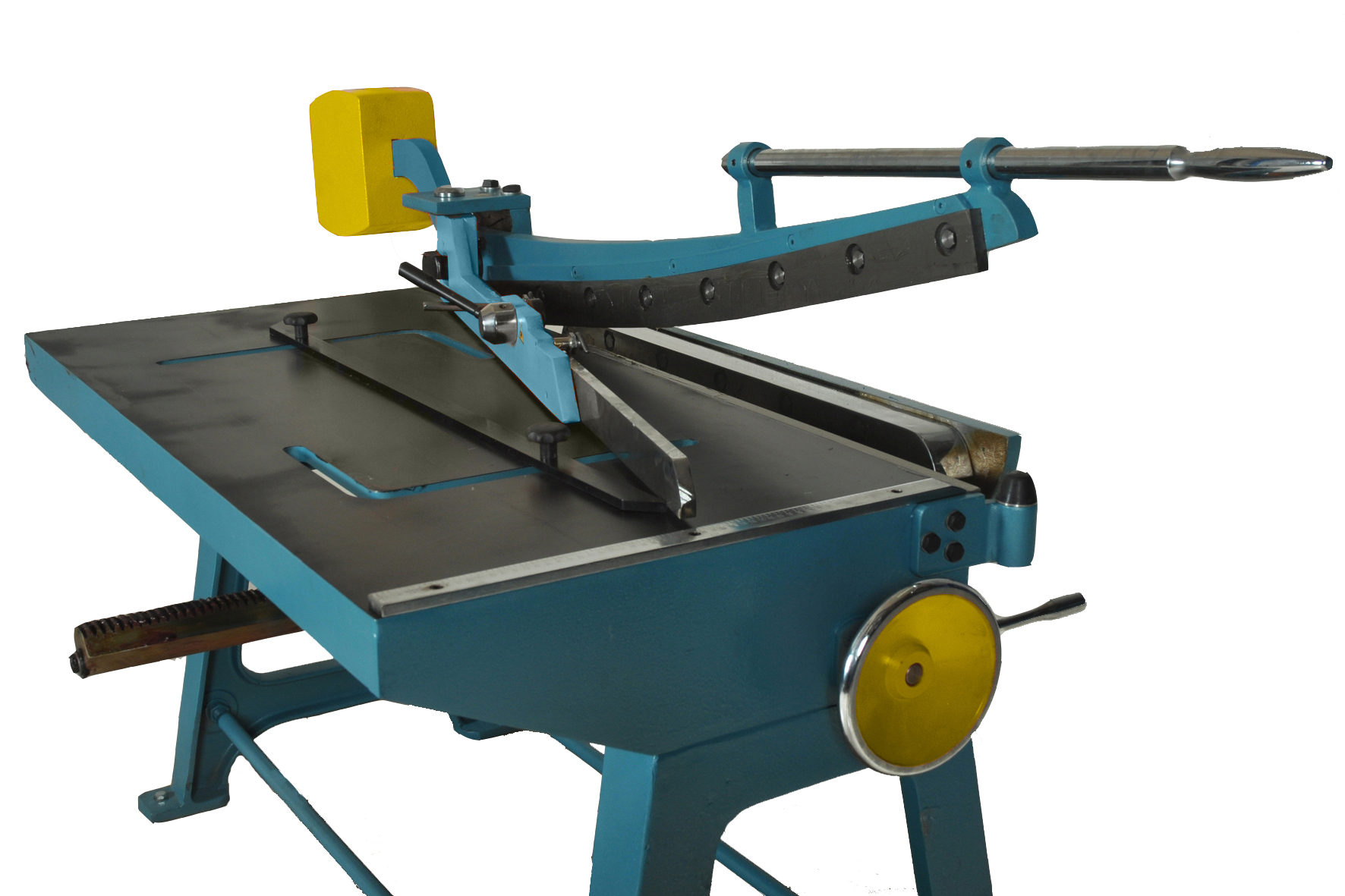

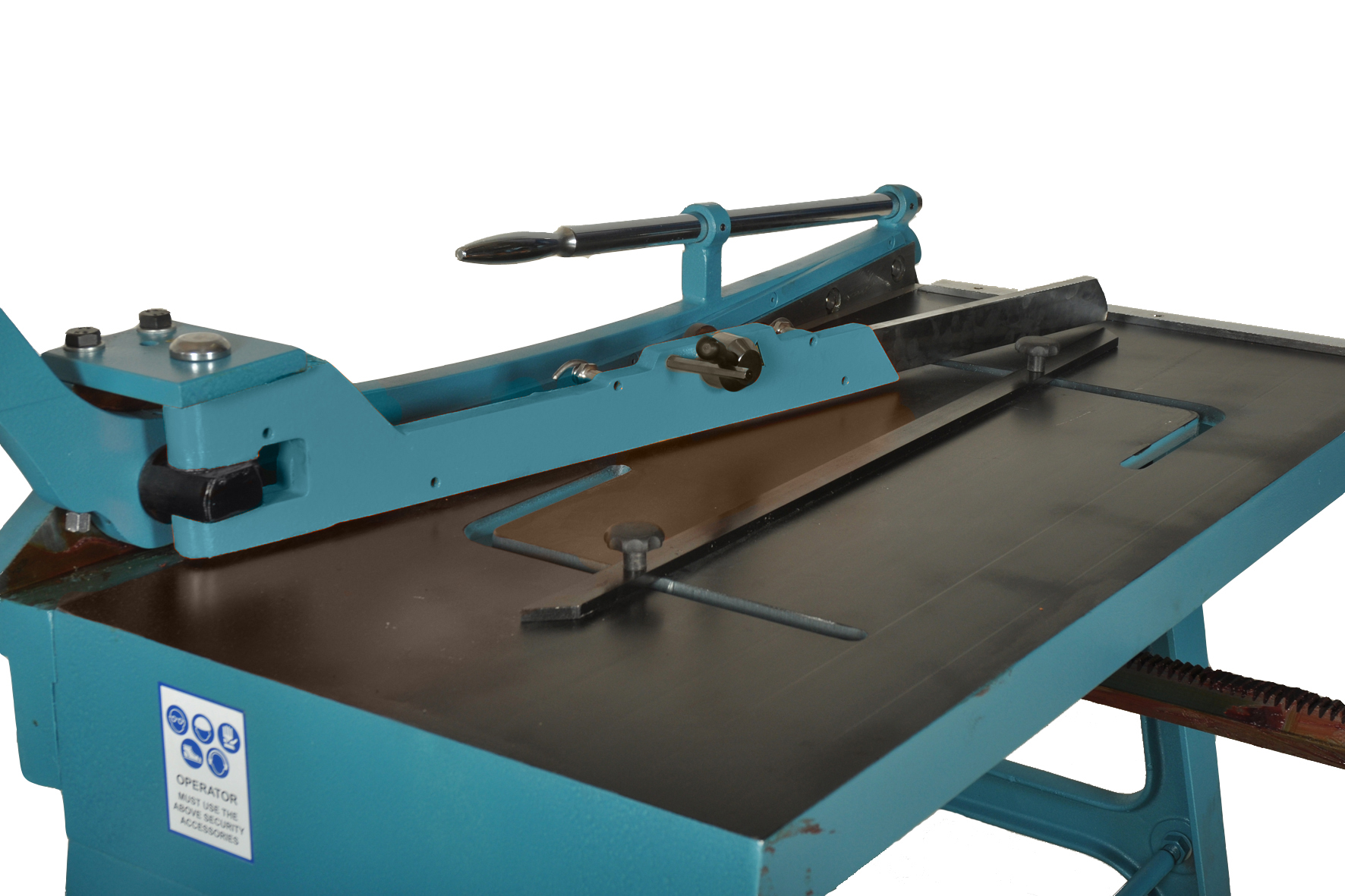

Hand lever sheet shear
Hand lever sheet shear
TSX 1060
Item number: #530711860
Description
Scantool TSX 1060 is a heavy-duty industrial hand lever shear
TSX 1060 cuts ordinary steel (St37) plates up to a width of 1020 mm and a thickness of 1,5 mm

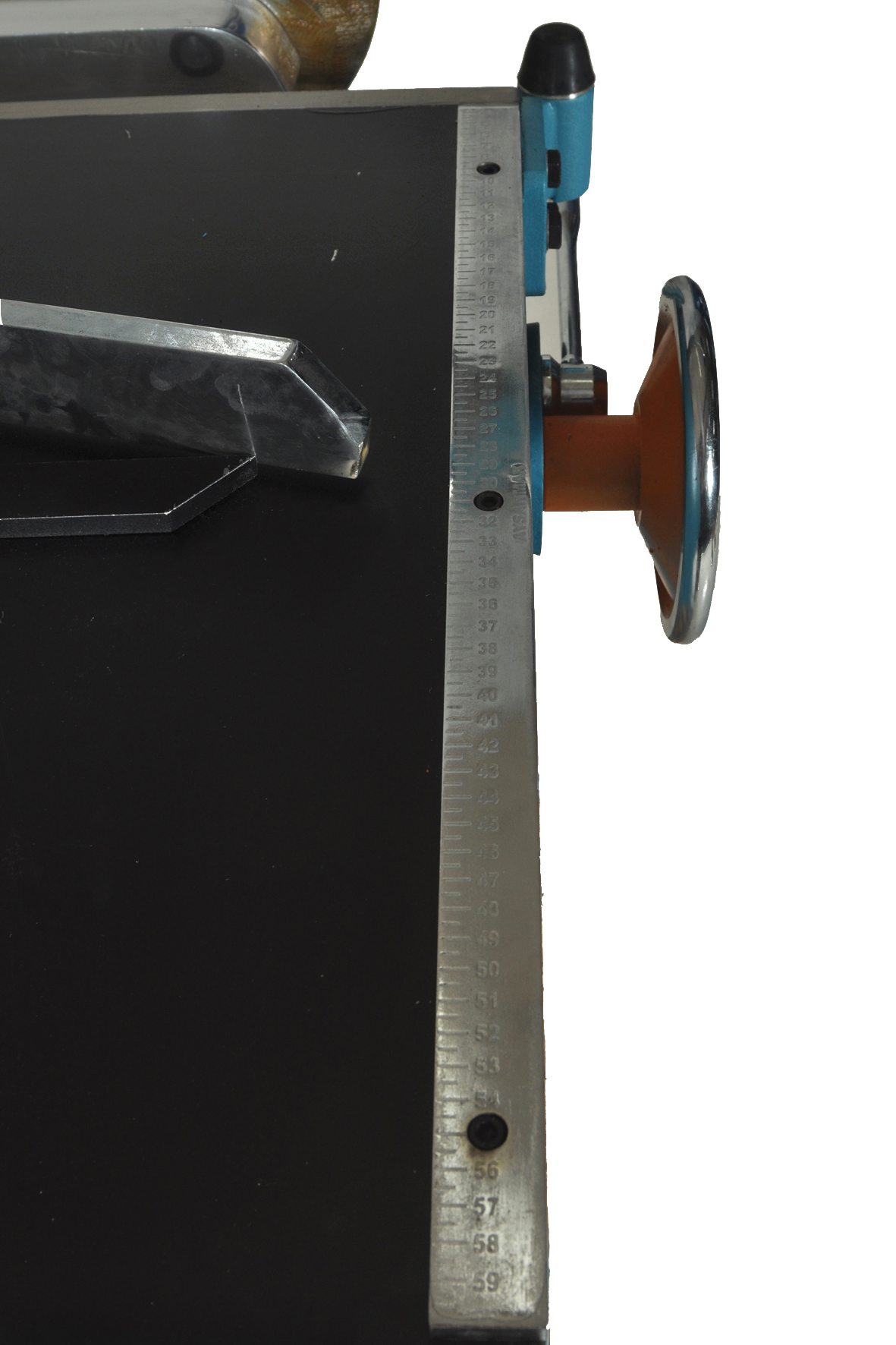

Large worktable, 600 x 1300 mm, and adjustable tool rest, operated by hand wheel
Heavy-duty plate holder
Sturdy, cast iron construction
Very competitive...
Read More >>
×
QUOTATION REQUEST
Product Specifications
| Capacity (mm) | 1060 x 1,5 |
| Sheet thickness steel (mm) | 1,5 |
| Working width (mm) | 1060 |
| Manual back gauge | 1 |
| Length (mm) | 2475 |
| Width (mm) | 950 |
| Height (mm) | 1070 |
| Net weight (kg) | 363 |
