Pneumatic guillotine shear
Pneumatic guillotine shear
TSP 150
Item number: #530601200
Description
SCANTOOL TSP pneumatic shears with following features:
• Danish top quality and finish to the smallest details
• Solid, compact welded steel construction
• Operated pneumatically by a pedal
• Cuts metal, plastic foil and other materials
• Automatic sheet holder coated with neoprene rubber
...
Read More >>
×
QUOTATION REQUEST
Product Specifications
| Capacity (mm) | 1040 x 1,5 |
| Sheet thickness steel (mm) | 1,5 |
| Working width (mm) | 1030 |

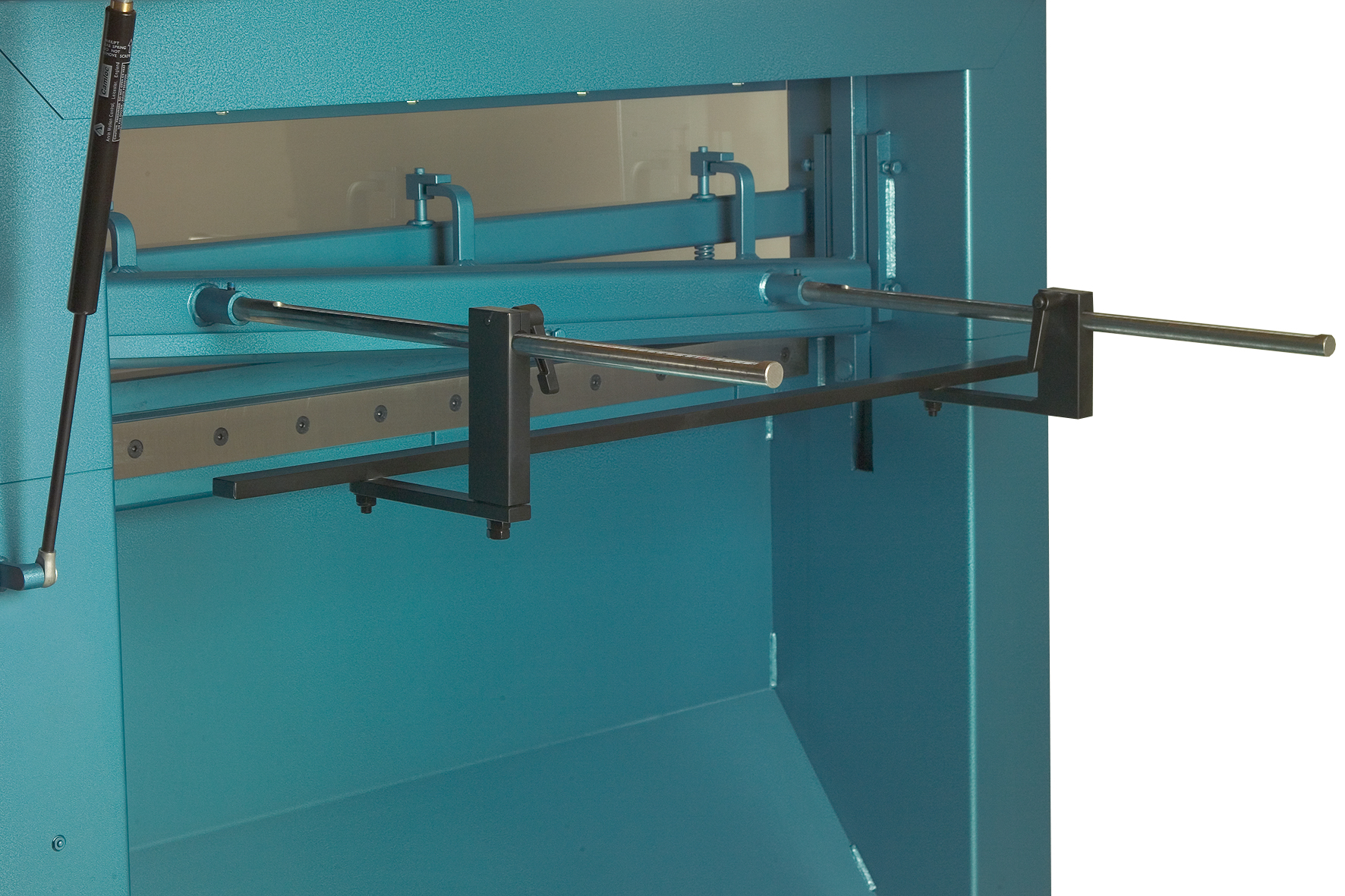

| Back gauge (mm) tre | 550 |
| Cutting/min. | 28 |
| NL/Cycle | 22 |
| Side stop (mm) | 200 |
| Tank capacity (L) | 77 |
| Notching angle | 3° |
| Manual back gauge | 1 |
| Length (mm) | 1380 |
| Width (mm) | 1210 |
| Height (mm) | 1300 |
| Net weight (kg) | 195 |
