Magnetic drilling machine

MB 45

Item number: #100386045

Description

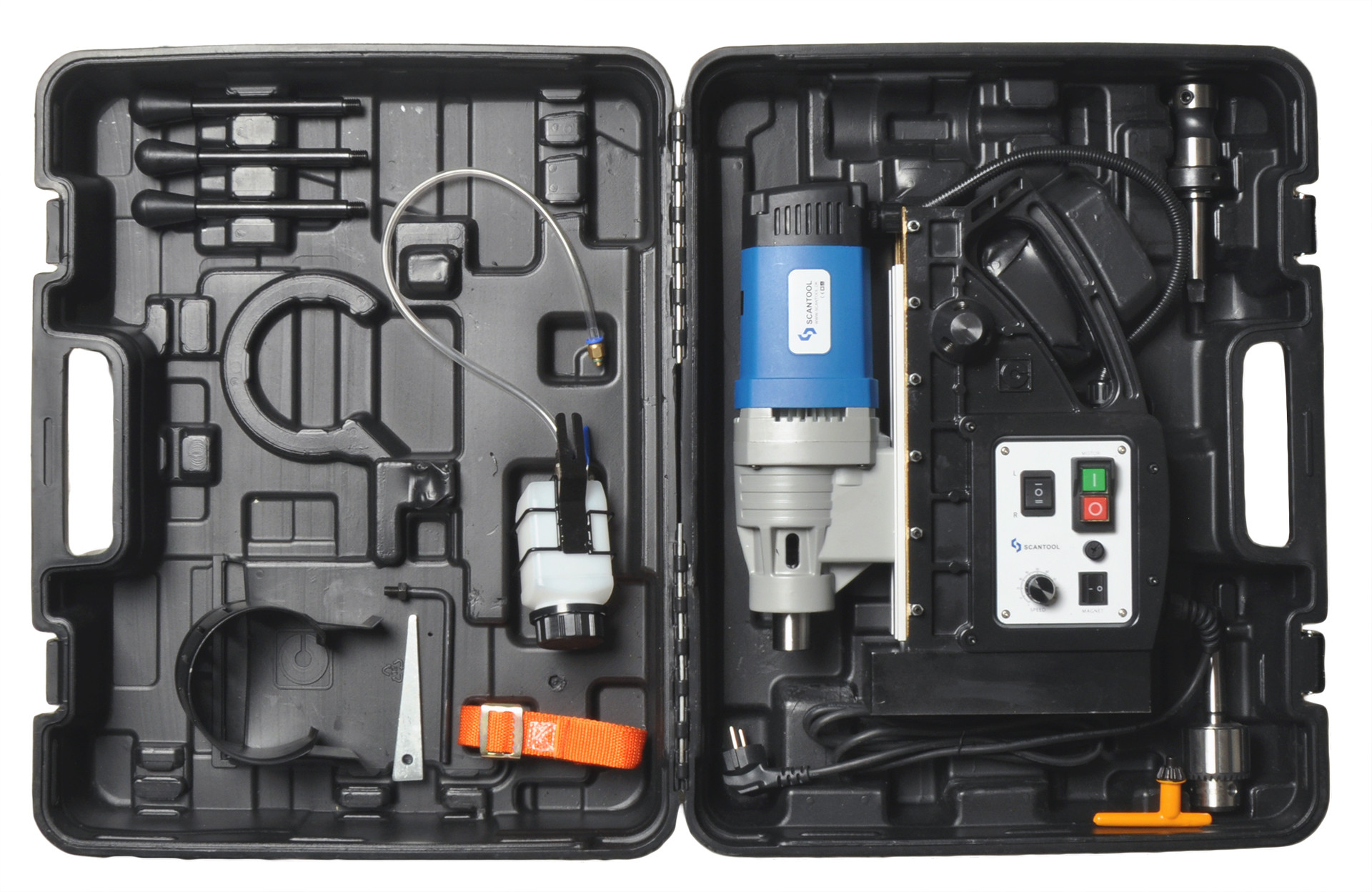

Scantool compact and portable magnetic drill MB-45 with step-less and variable speed.

The MB-45 is a compact and robust magnetic drilling machine with a holding power of 1400 Watt.

The MB-45 has stepless, variable speed, right-left running and do tapping up to M12.

We have thought about the design, and because...
Read More >>

×

Product Specifications

Motor (Watt) 1400
Voltage 1x230V-50 Hz
Rpm 100-330
Weldon shaft (mm) 19
Drilling Capacity (ø mm) 45
Drill chuck (mm) 3-16
Drilling Depth (mm) 55
Stroke (mm) 195
Magnet lift (N) 13000
Magnetic base (mm) 104x200x45
Tapping Capacity M 12
Noise level (dB) 85
Length (mm) 310
Width (mm) 285
Height (mm) 385/590
Net weight (kg) 18
