Bending roller - motorised
Bending roller - motorised
EBR 1050 x 3,0
Item number: #500717003
Description

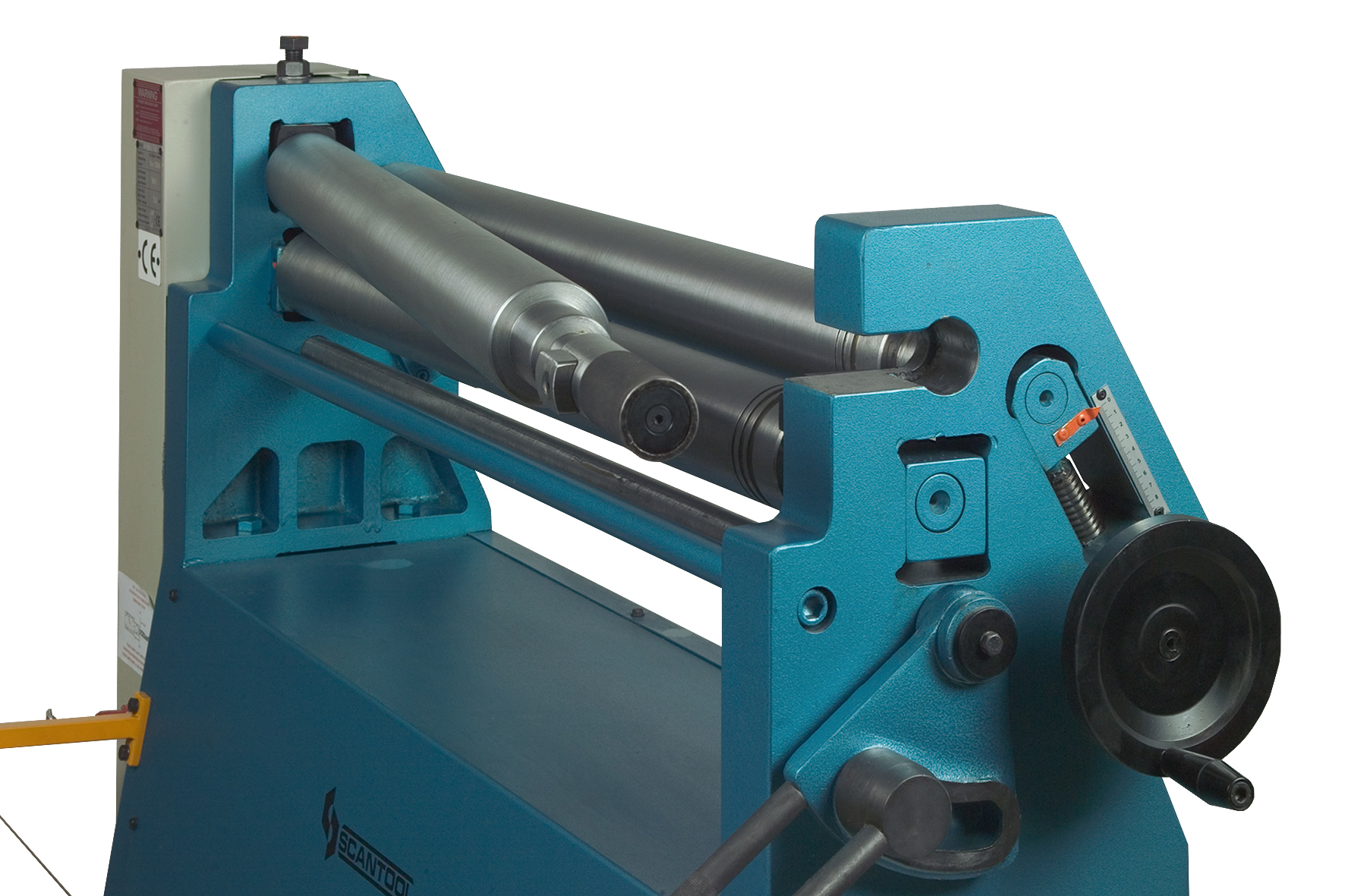

Asymetrical three-roller motorised bending machine
This model is designed for light to medium jobs. It is perfect for aluminum bends and the ventilation industry. The price is attractive and it can be used for many different applications.
• Cast iron main frames
• Main motor with brake

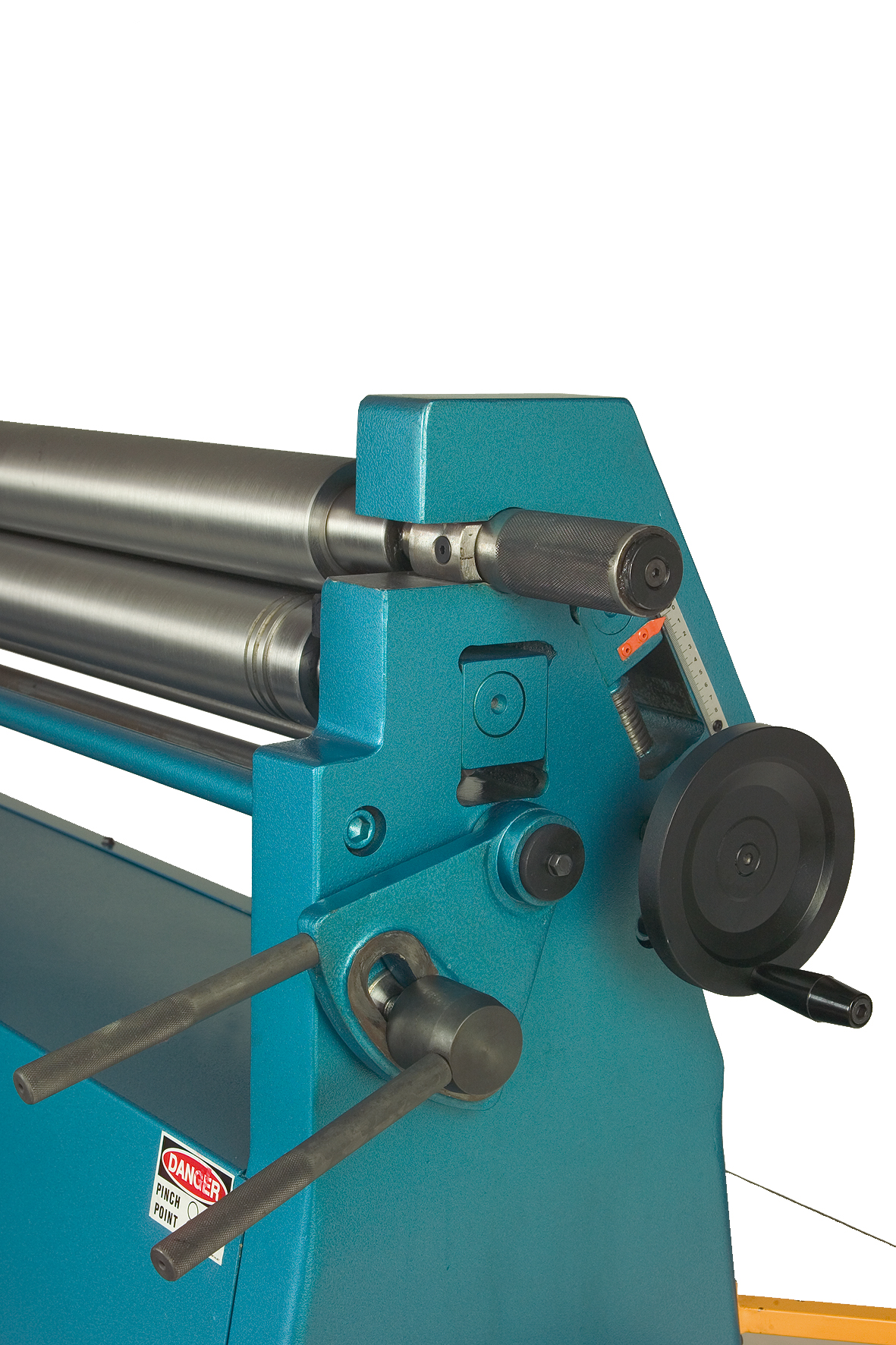

• Rotatable top roller
• Motor-po...
Read More >>
This model is designed for light to medium jobs. It is perfect for aluminum bends and the ventilation industry. The price is attractive and it can be used for many different applications.
• Cast iron main frames
• Main motor with brake
• Rotatable top roller
• Motor-po...
Read More >>
×
QUOTATION REQUEST
Product Specifications
| Capacity (mm) | 1050 x 3,0 |
| Sheet thickness steel (mm) | 3,0 |
| Working length (mm) | 1050 |
| Voltage | 3x400V-50/60 Hz |
| Motor (HP) | 2,0 |
| Motor (kW) | 1,5 |
| Min. Bending diameter (ø mm) | 135 |
| Roller diameter (ø mm) | 90 |
| Roller speed (m/min.) | 6 |
| Length (mm) | 2000 |
| Width (mm) | 750 |
| Height (mm) | 1200 |
| Net weight (kg) | 450 |
