Bending roller - motorised
Bending roller - motorised
EBR 1270 x 2,5
Item number: #500717005
Description

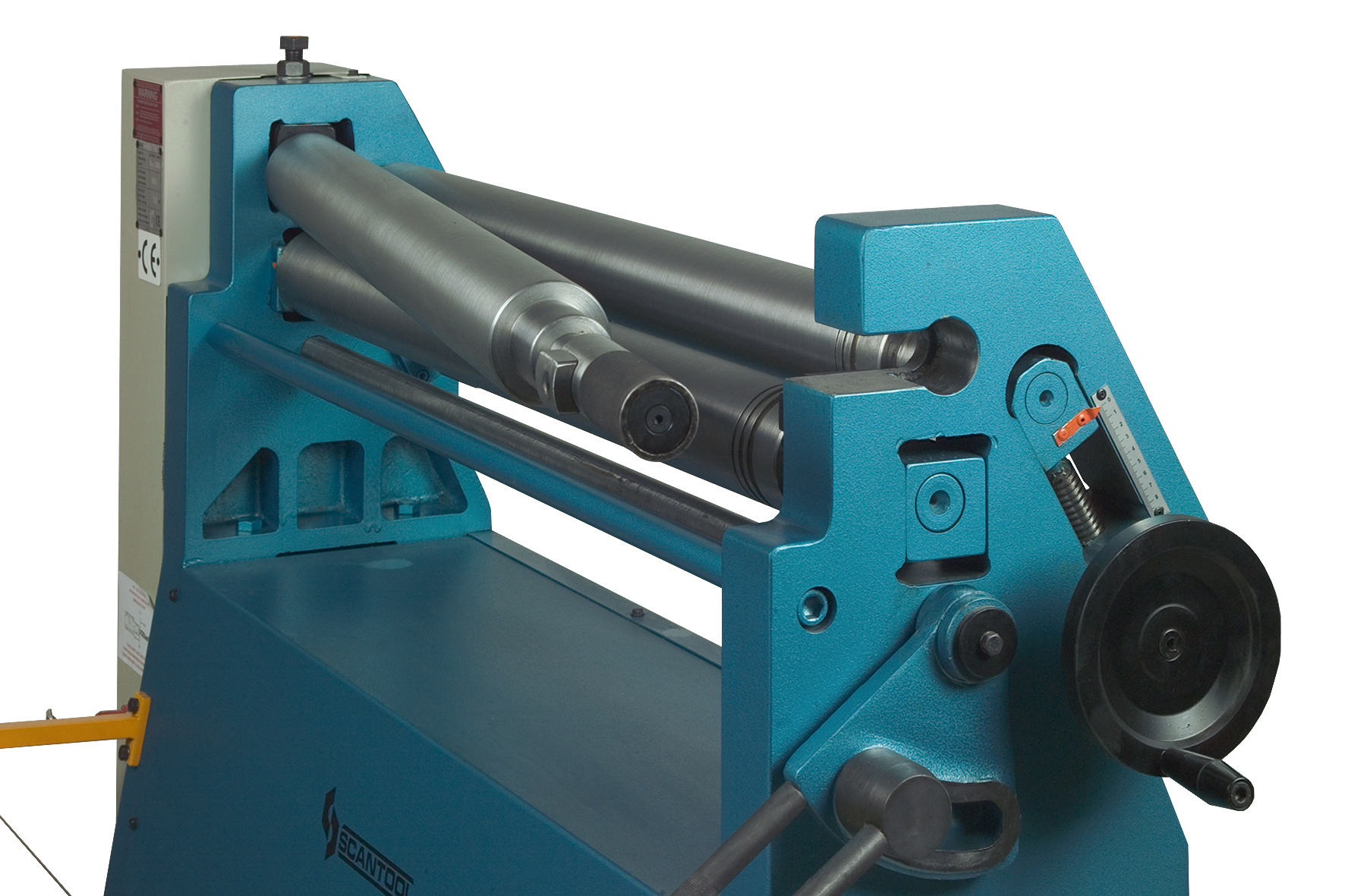

Asymetrical three-roller motorised bending machines
This model is designed for light to medium jobs. It is perfect for aluminum bends and the ventilation industry. The price is attractive and it can be used for many different applications.
• Cast iron main frames
• Main motor with brake
• Rotatable top...
Read More >>
×
QUOTATION REQUEST
Product Specifications
| Capacity (mm) | 1270 x 2,5 |
| Sheet thickness steel (mm) | 2,5 |
| Working length (mm) | 1270 |
| Voltage | 3x400V-50/60 Hz |
| Motor (HP) | 2,0 |
| Motor (kW) | 1,5 |
| Min. Bending diameter (ø mm) | 135 |
| Roller diameter (ø mm) | 90 |
| Roller speed (m/min.) | 6 |
| Length (mm) | 2250 |
| Width (mm) | 750 |
| Height (mm) | 1200 |
| Net weight (kg) | 420 |
