V-belt driven drill press
V-belt driven drill press
SCANTOOL 16ATF
Item number: #100765000
Description
SCANTOOL 16AEF & 16ATF are professional drill presses for workshop and industry.
Standard features:
• Morse Taper No. 2
• Reversible spindle rotation
• Complete with auto lock chuck

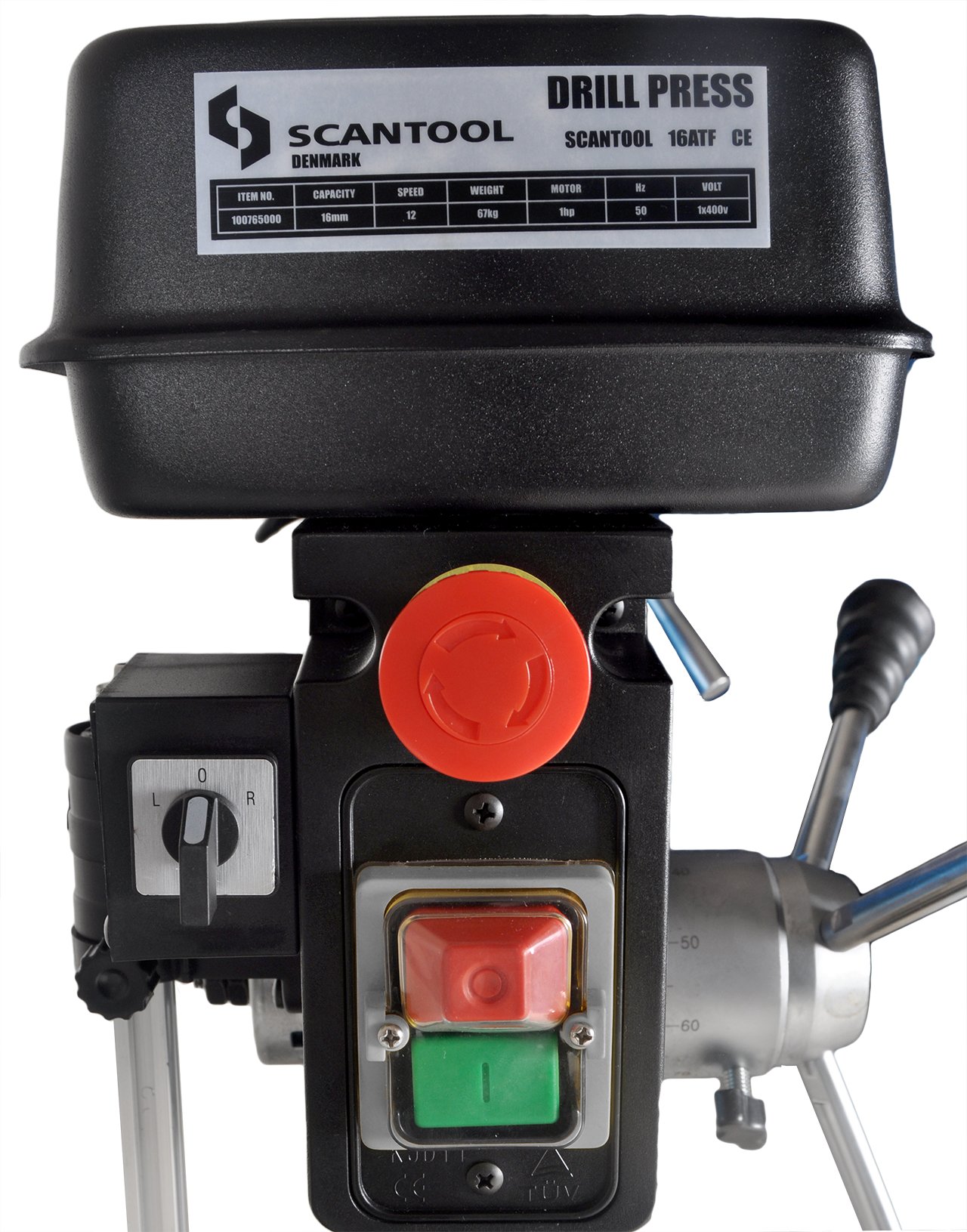

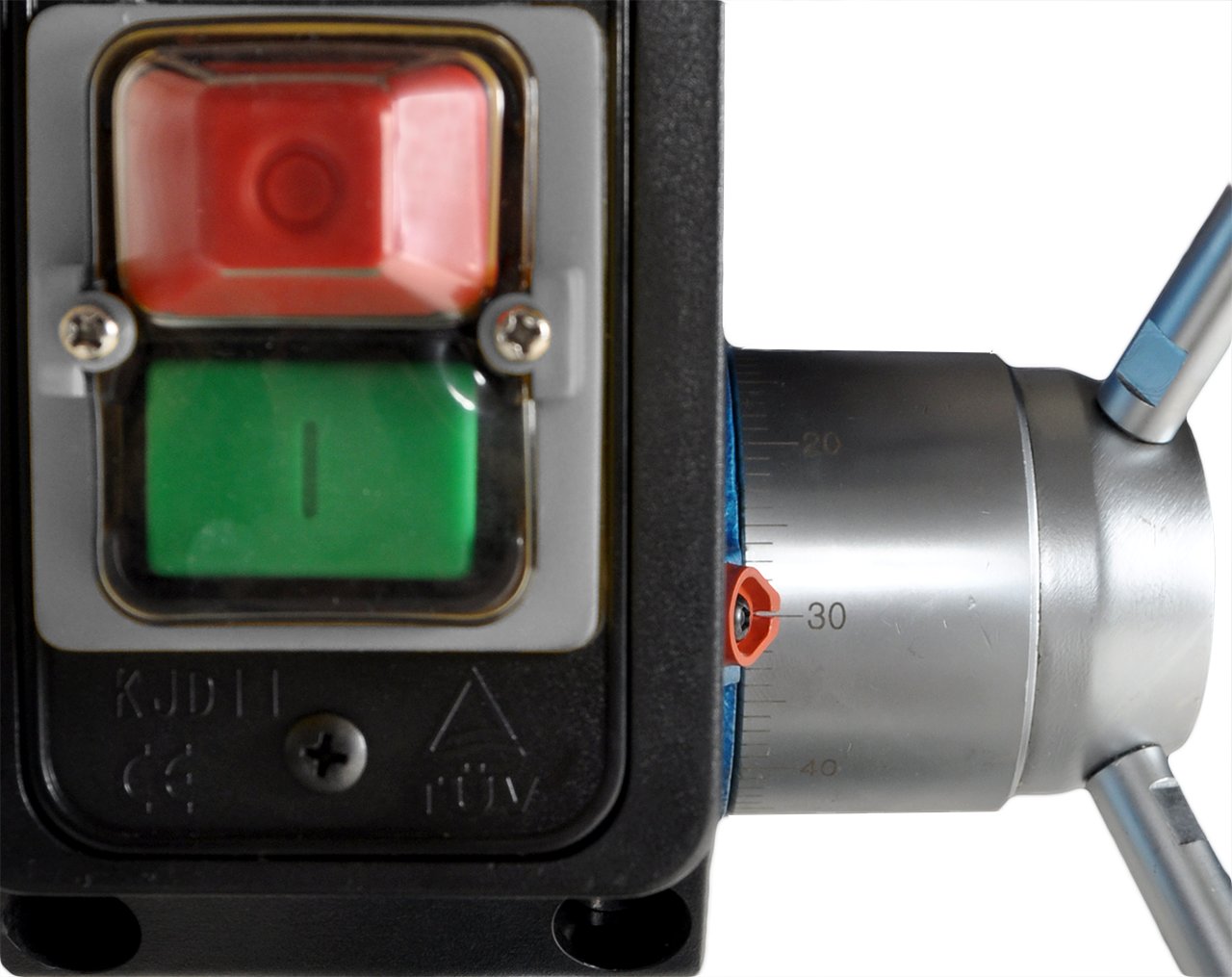

• Separate emergency stop and working light

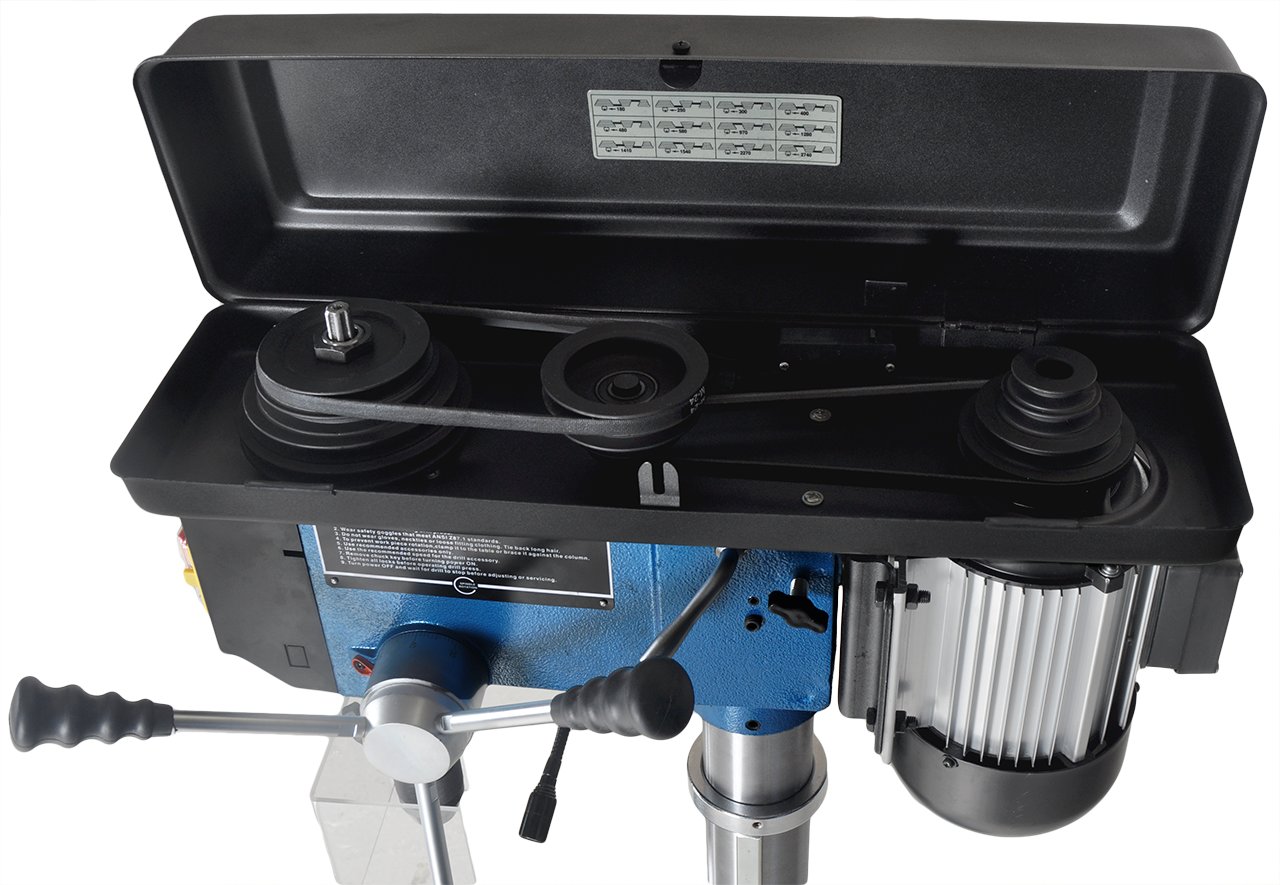

• For max. safety when changing the belt speed the machines are su...
Read More >>
×
QUOTATION REQUEST
Product Specifications
| Rpm | 280-2380 |
| Voltage | 3x400V - 50 Hz |
| Motor (kW) | 0,75 |
| Drilling Capacity (ø mm) | 1-20 |
| Drill chuck (mm) | 16 |
| Max. tilt of table (+/-) | 45° |
| Throat depth (mm) | 190 |
| Swing Capacity (mm) | 410 (14") |
| Max. distance spindle/table (mm) | 720/1210 |
| Size of table (mm) | 285x285 |
| Size of base (mm) | 480x270 |
| Max. spindle travel (mm) | 80 |
| Number of spindle speeds | 12 |
| Reversible | 1 |
| On Pedestal | 1 |
| Height (mm) | 1600 |
| Max. load on table (kg) | 12 kg. |
| Net weight (kg) | 67 |
