Geared head milling and drilling machine
Geared head milling and drilling machine
DM-40BA
Item number: #47000000
Description

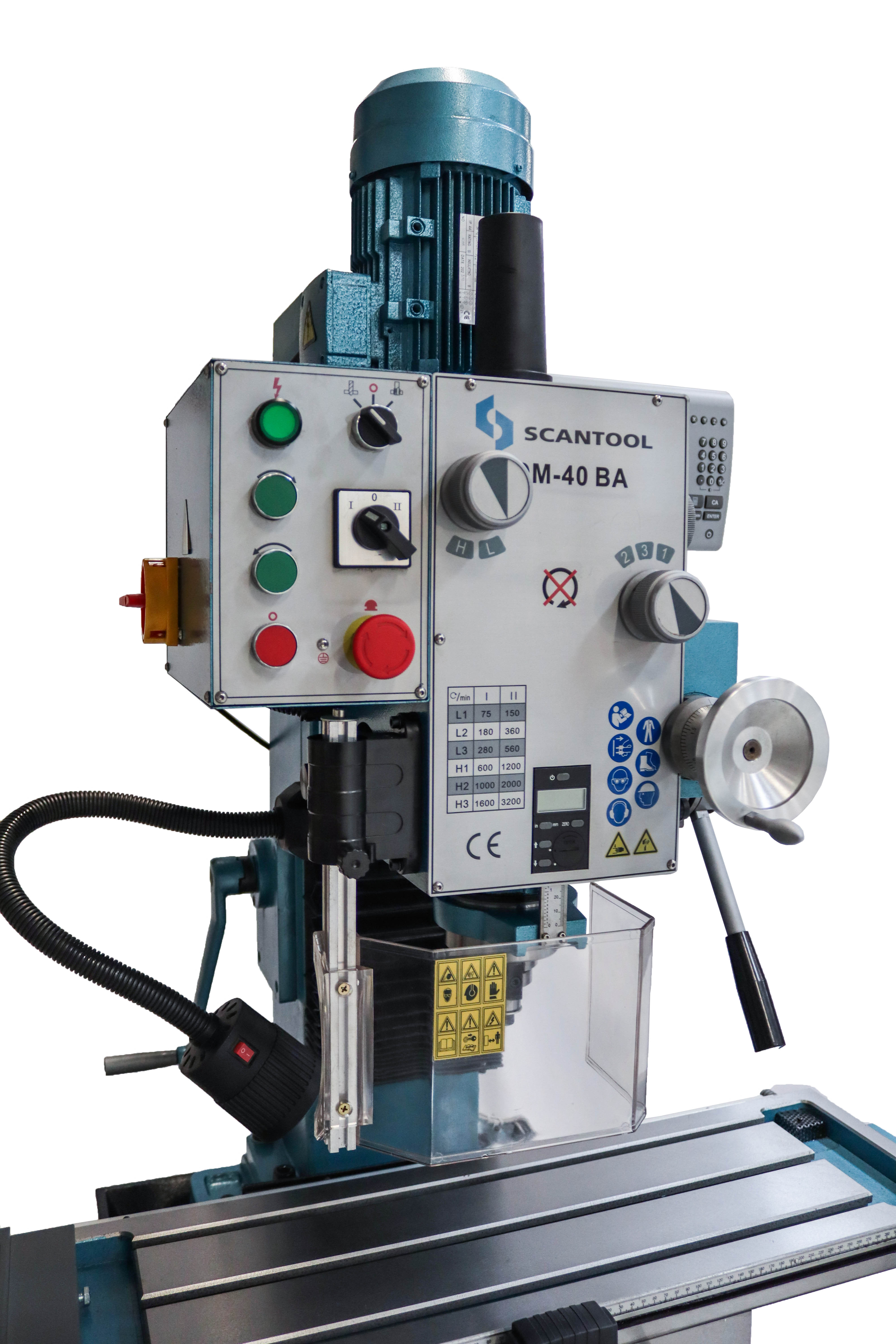

The SCANTOOL DM-40BA is a versatile benchtop drill-mill with gear transmission and auto feed, designed for precision and performance in demanding workshop environments.
Equipped with a powerful 1.1 kW motor (3x400V), an...
Read More >>
×
QUOTATION REQUEST
Product Specifications
| Bench model | 1 |
| Drilling capacity cast iron | 45 |
| End mill capacity | 32 |

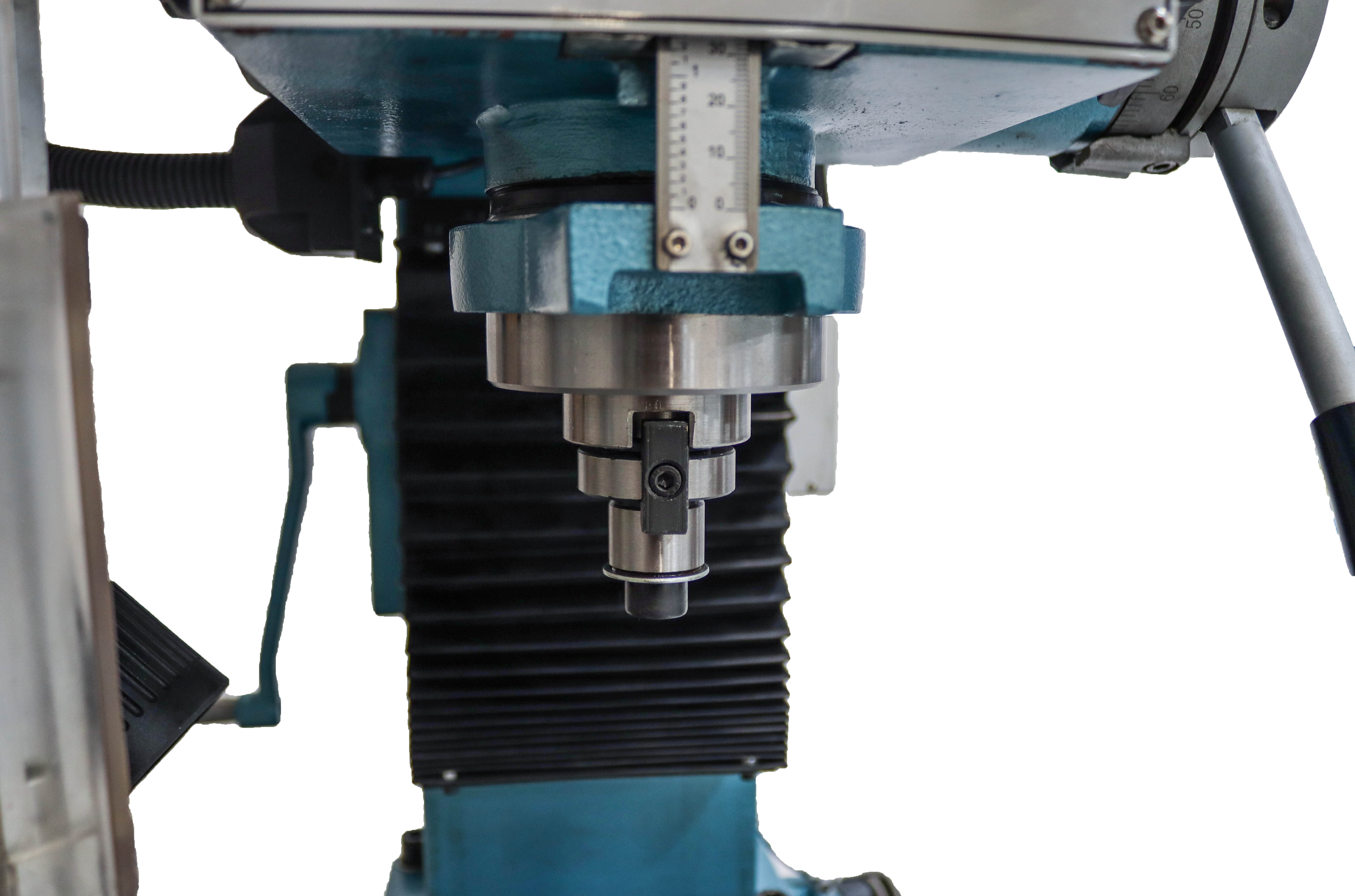

| Taper of spindlenose | MT4 |
| Rpm | 75 - 3200 |

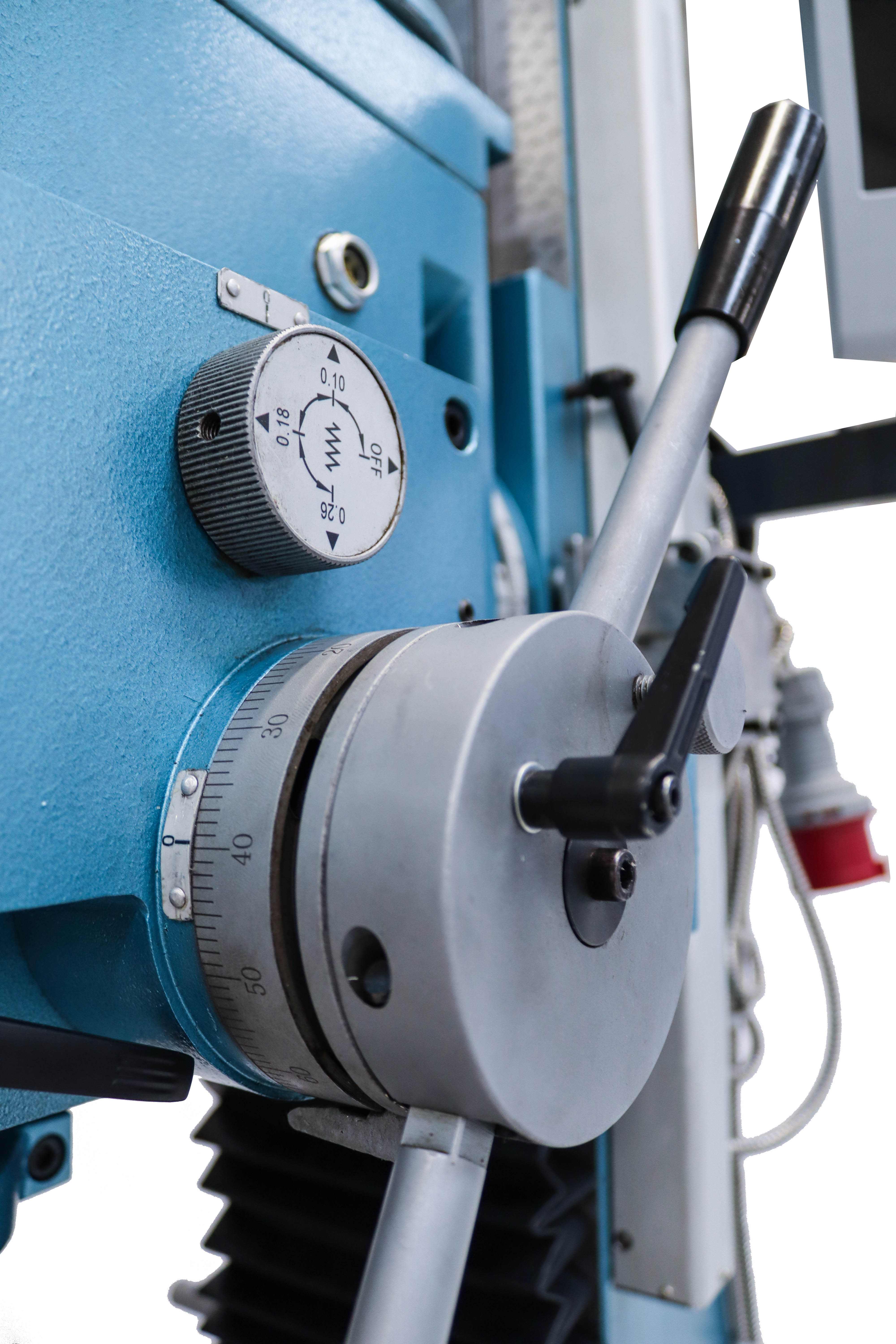

| Spindle feeds | (3) 0.1/0.18/0.26mm/rev. |
| Head tiltable | ±45° |
| Stroke (mm) | 120 |
| Throat depth (mm) | 258 |
| Distance between table & spindle (mm) | 460mm |
| Table length (mm) | 800mm |
| Table width (mm) | 240mm |
| T-slot | 14mm |
| Cross travel | 190mm |
| Longitudinal travel | 560mm |
| Vertical travel | 350mm |
| Max. load on table (kg) | 100kg |
| Motor (kW) | 1.1/1.5 |
| Voltage | 3x400V |
| Package size (L x W x H) | 860x760x1150mm |
| Net weight (kg) | 340 |
| Gross weight (kg) | 390 |
