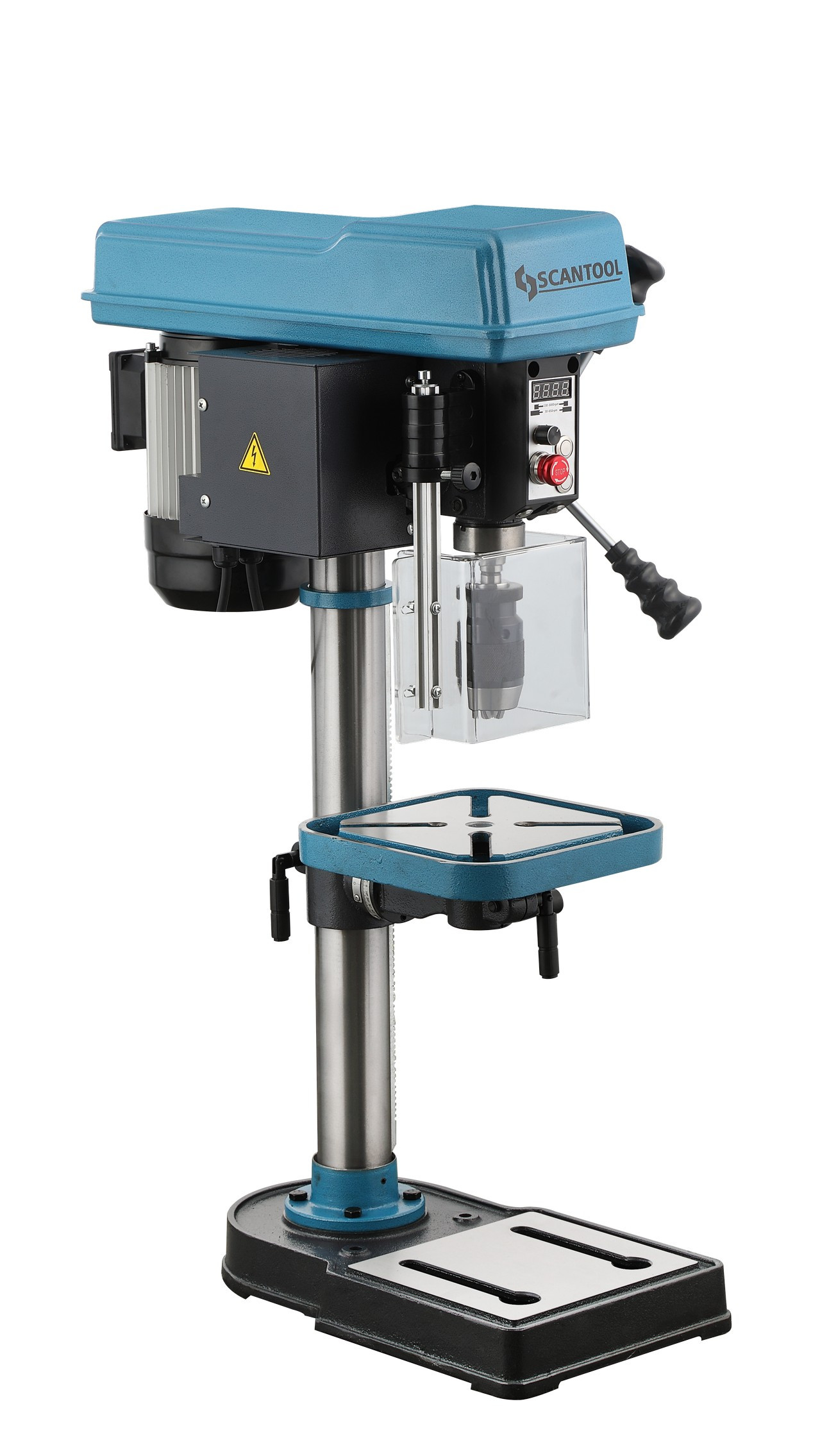

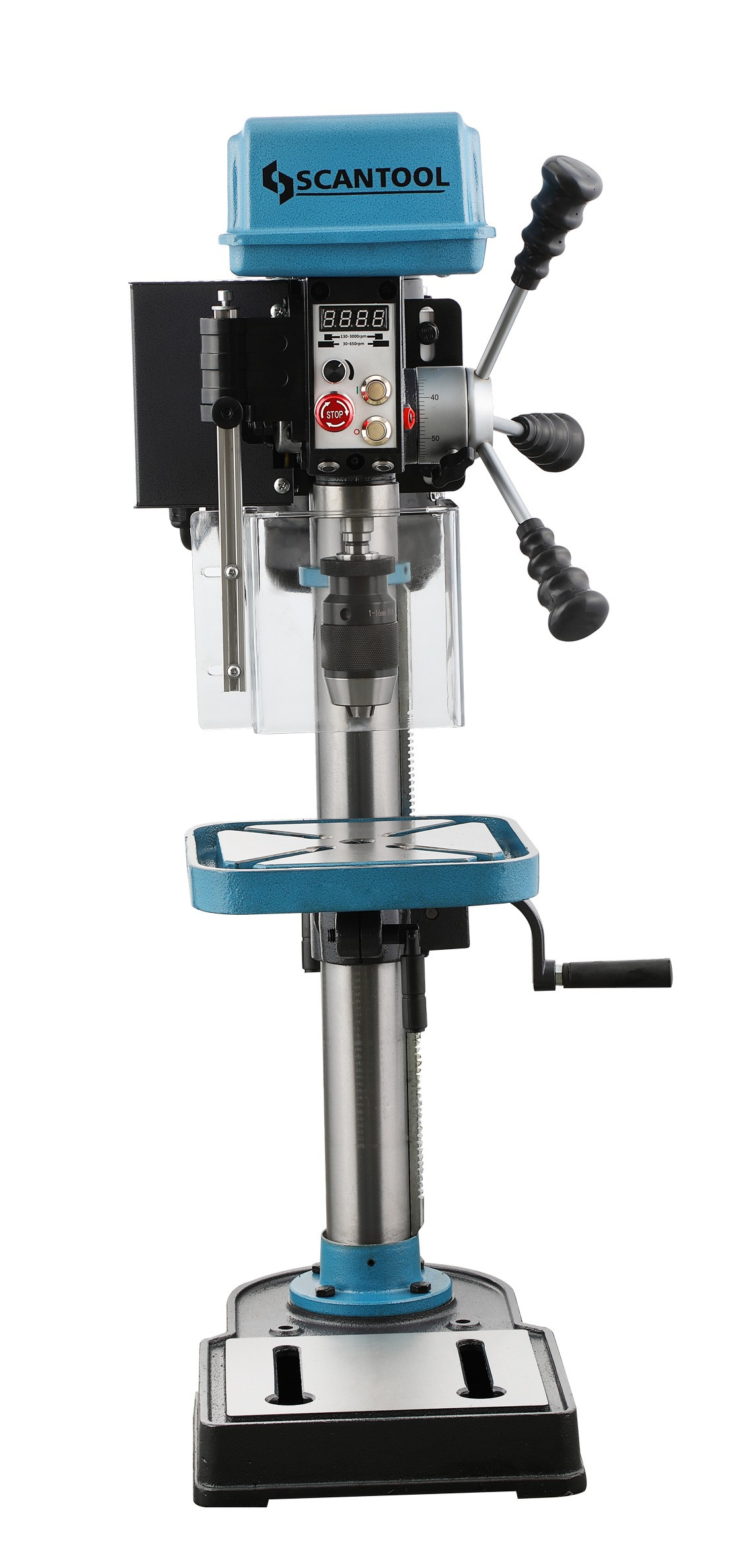

V-belt driven drill press
V-belt driven drill press
SCANTOOL 16VB
Item number: #100800000
Description
SCANTOOL 16VB is a professional drill press for workshop and industry
Standard features:
- Variable speed 30-3000 rpm.
- Morse Taper No. 2
- Complete with auto lock chuck
- Separate emerg...
Read More >>
×
QUOTATION REQUEST
Product Specifications
| Morse Taper | 2 |
| Drill chuck (mm) | 16 |
| Voltage | 1x230V - 50 Hz |
| Number of spindle speeds | 2 |
| Drilling Capacity (ø mm) | 16 |
| Rpm | 30-3000 |
| Motor (Watt) | 400 |
| Throat depth (mm) | 125 |
| Max. distance spindle/table (mm) | 390/530 |
| Max. spindle travel (mm) | 60 |

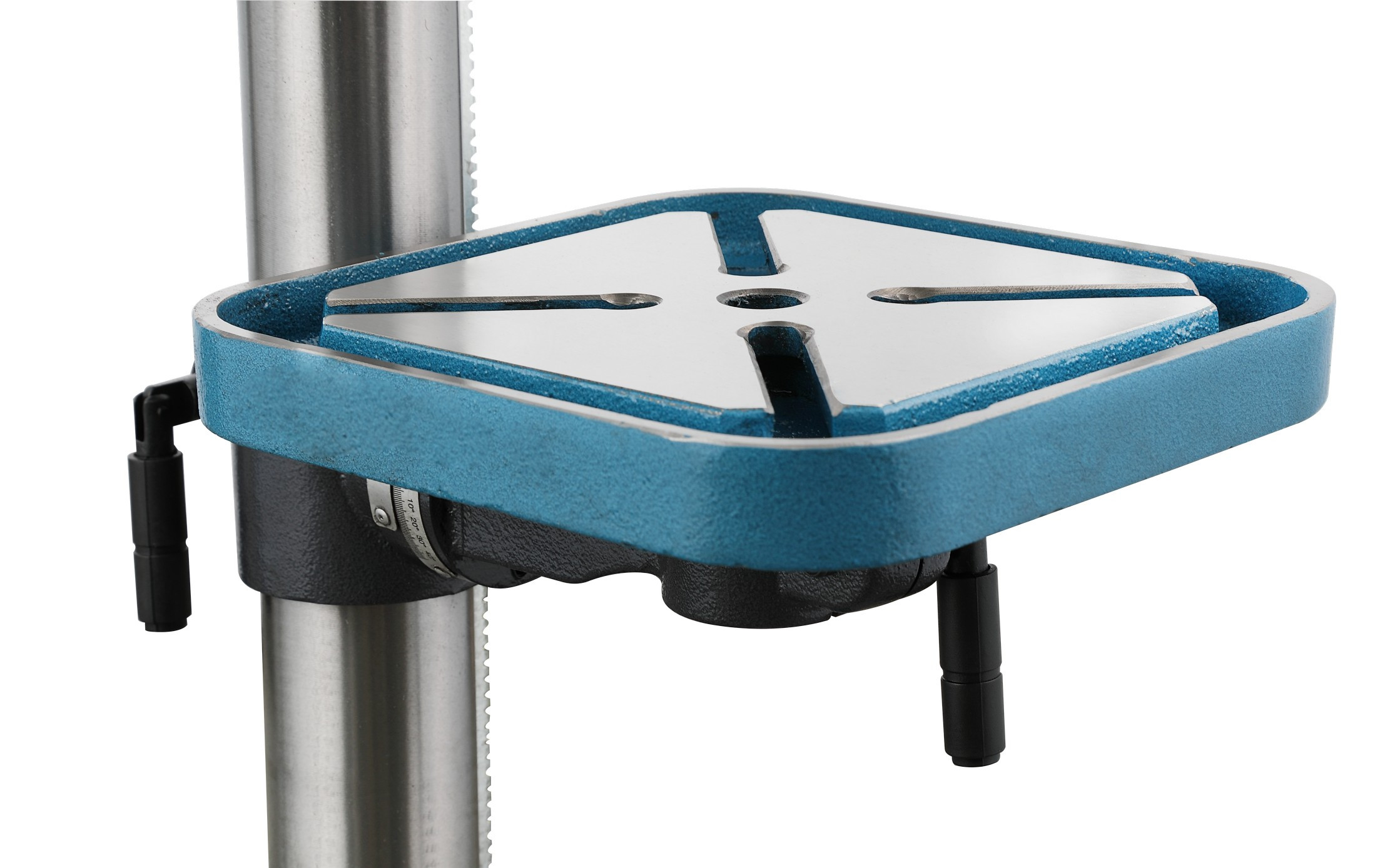

| Max. tilt of table (+/-) | 45° |
| Size of table (mm) | 220x220 |
| Size of base (mm) | 410x240 |
| Bench model | 1 |
| Height (mm) | 845 |
| Max. load on table (kg) | 10 kg. |
| Net weight (kg) | 36 |
