V-belt driven drill press
V-belt driven drill press
SCANTOOL 32VF
Item number: #100803000
Description

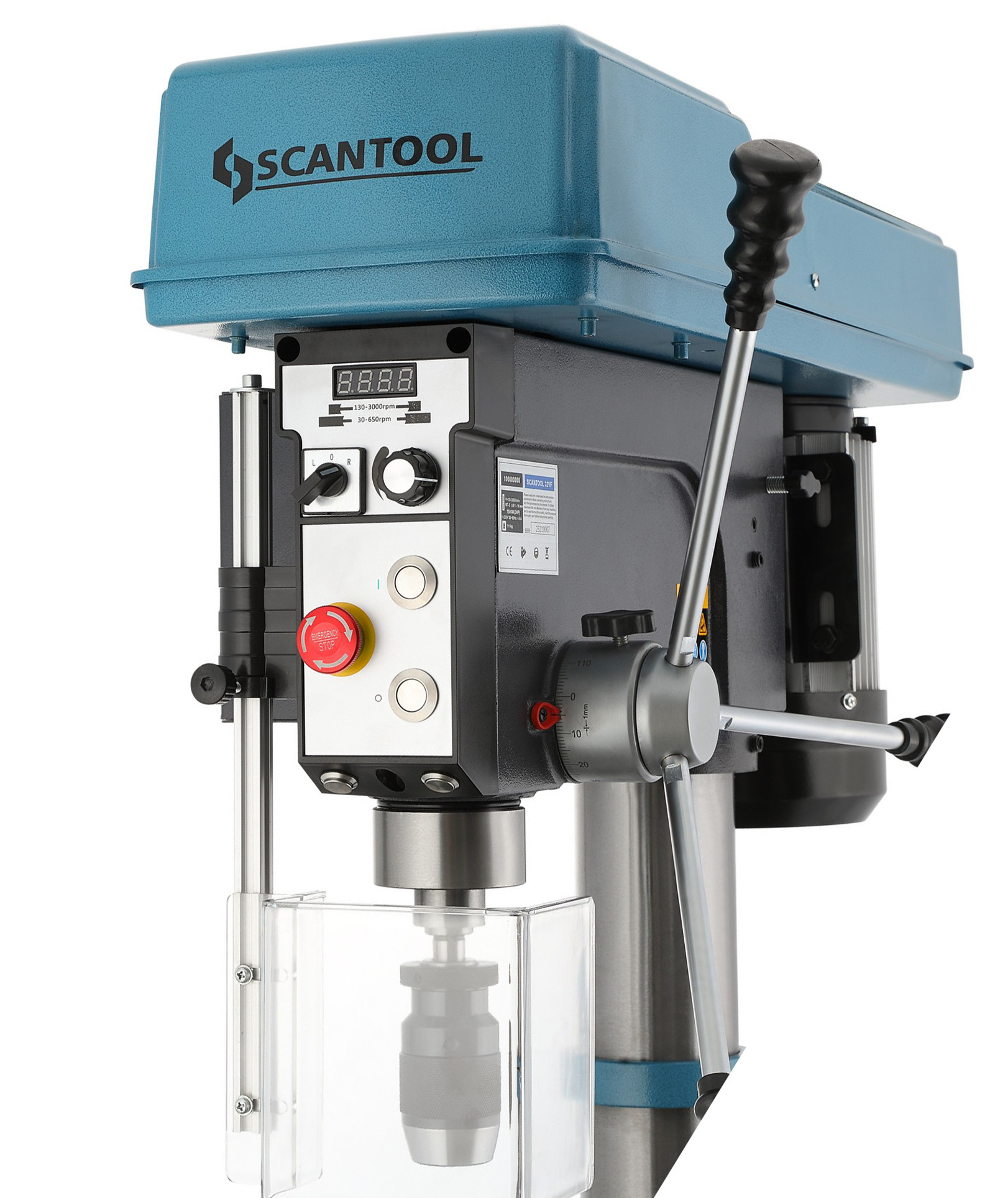

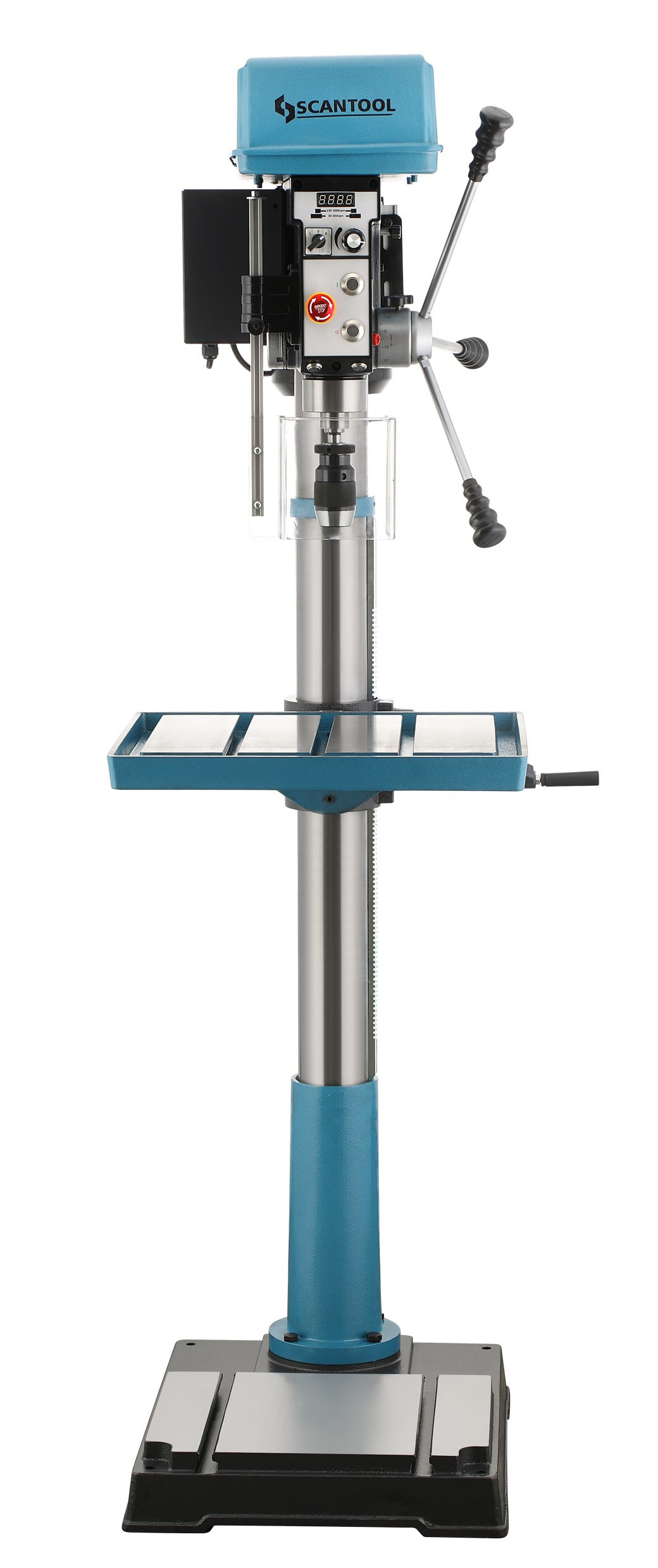

SCANTOOL 32VF is a professional drill press for workshop and industry
Standard features:
- Variable speed 30-3000 rpm.
- Left/right spindel direction
- Morse Taper No. 3
- Complete with auto lo...
Read More >>
×
QUOTATION REQUEST
Product Specifications
| Morse Taper | 3 |
| Drill chuck (mm) | 16 |
| Voltage | 1x230V - 50 Hz |
| Number of spindle speeds | 2 |
| Drilling Capacity (ø mm) | 32 |
| Rpm | 30-3000 |
| Motor (Watt) | 1500 |
| Throat depth (mm) | 255 |
| Max. distance spindle/table (mm) | 680/1170 |
| Max. spindle travel (mm) | 120 |
| Max. tilt of table (+/-) | 45° |
| Size of table (mm) | 475x425 |
| Size of base (mm) | 575x450 |
| Bench model | 1 |
| Height (mm) | 1710 |
| Max. load on table (kg) | 10 kg. |
| Net weight (kg) | 107 |
