V-belt driven drill press
V-belt driven drill press

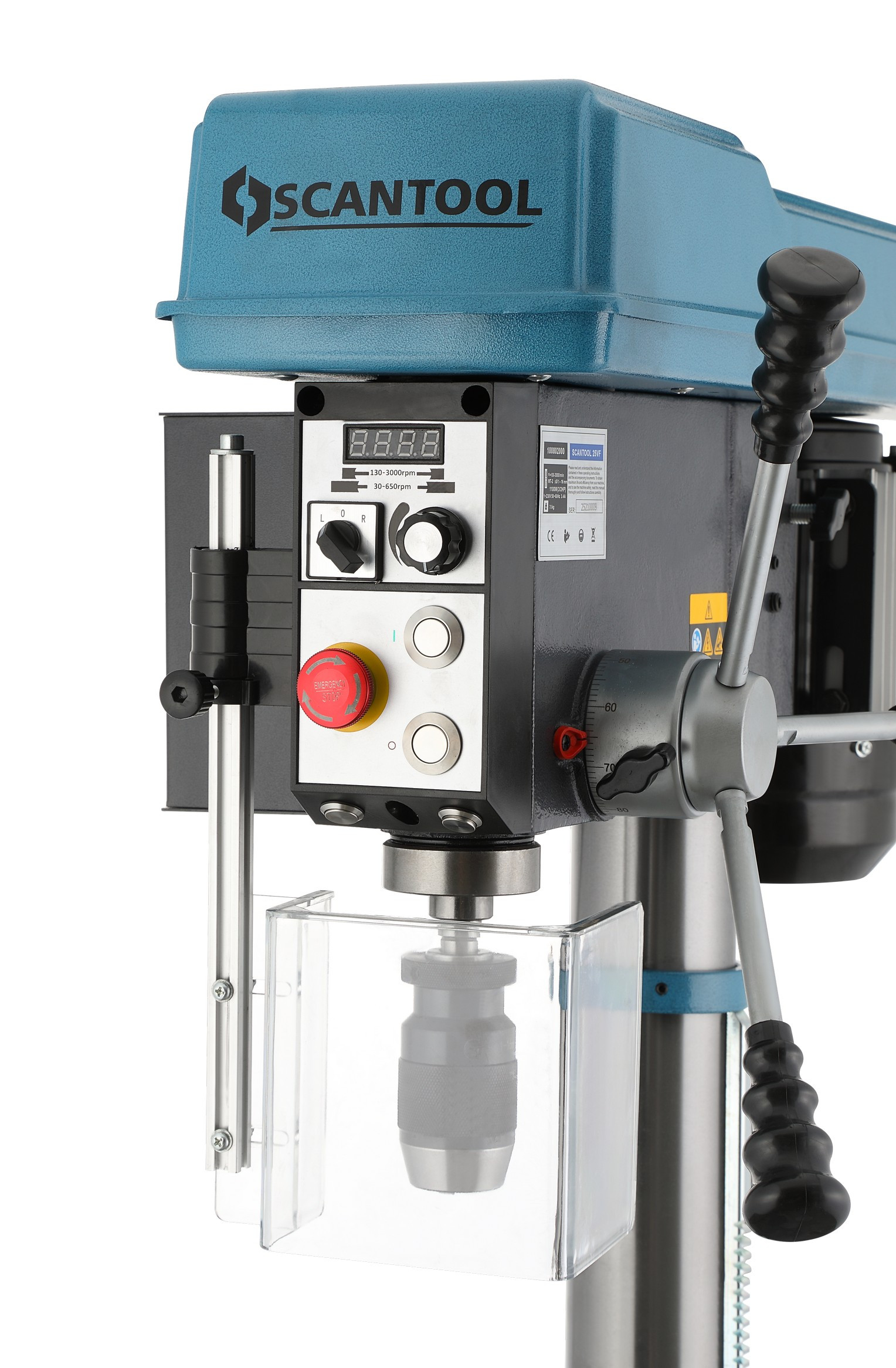

SCANTOOL 25VF
Item number: #100802000
Description
SCANTOOL 25VF is a professional drill press for workshop and industry
Standard features:
- Variable speed 30-3000 rpm.
- Left/right spindel direction
- Morse Taper No. 2
- Complete with auto...
Read More >>
×
QUOTATION REQUEST
Product Specifications
| Morse Taper | 2 |
| Drill chuck (mm) | 16 |
| Voltage | 1x230V - 50 Hz |
| Number of spindle speeds | 2 |
| Drilling Capacity (ø mm) | 23 |
| Rpm | 30-3000 |

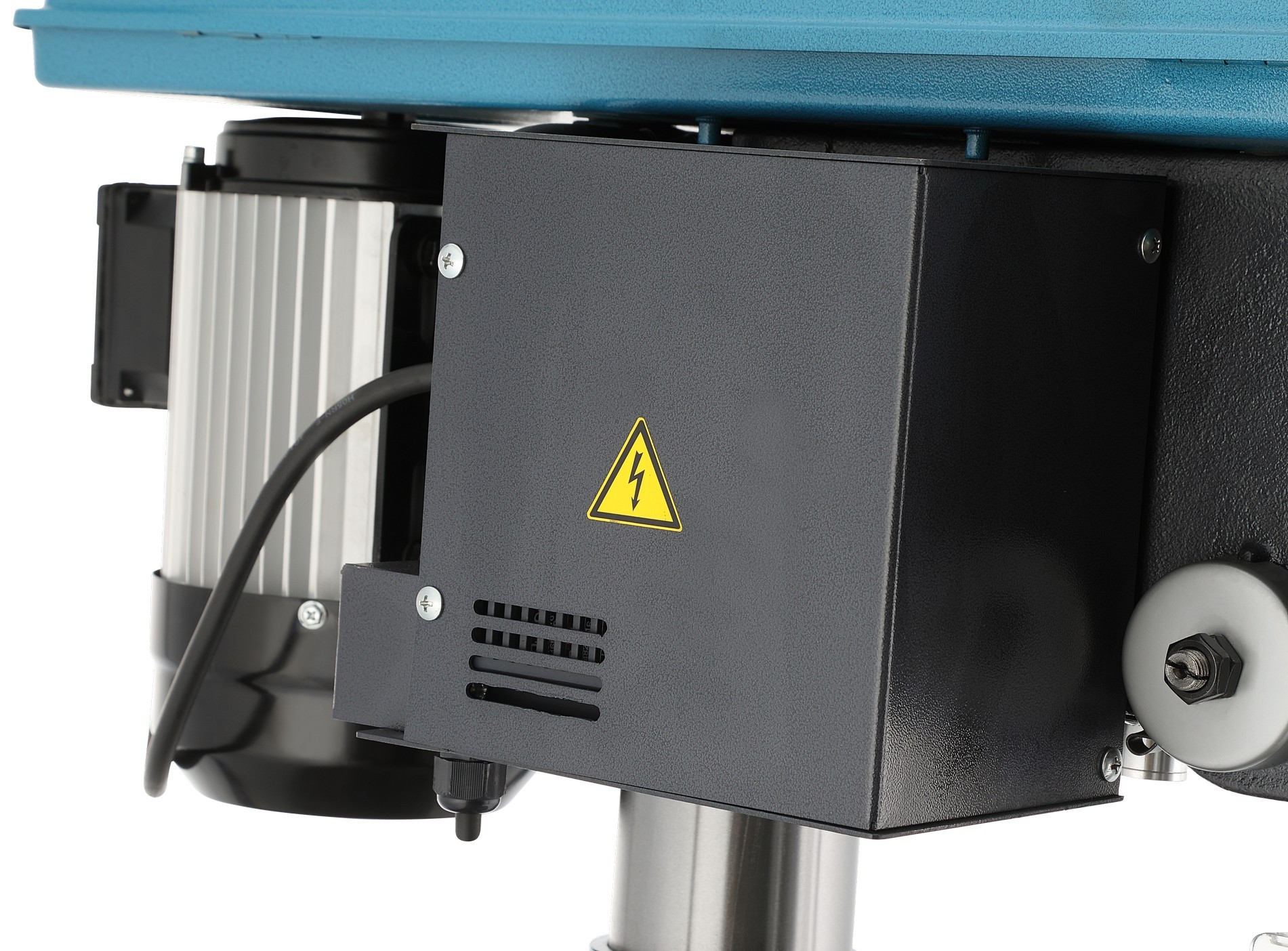

| Motor (Watt) | 1100 |
| Throat depth (mm) | 215 |
| Max. distance spindle/table (mm) | 685/1175 |
| Max. spindle travel (mm) | 80 |
| Max. tilt of table (+/-) | 45° |

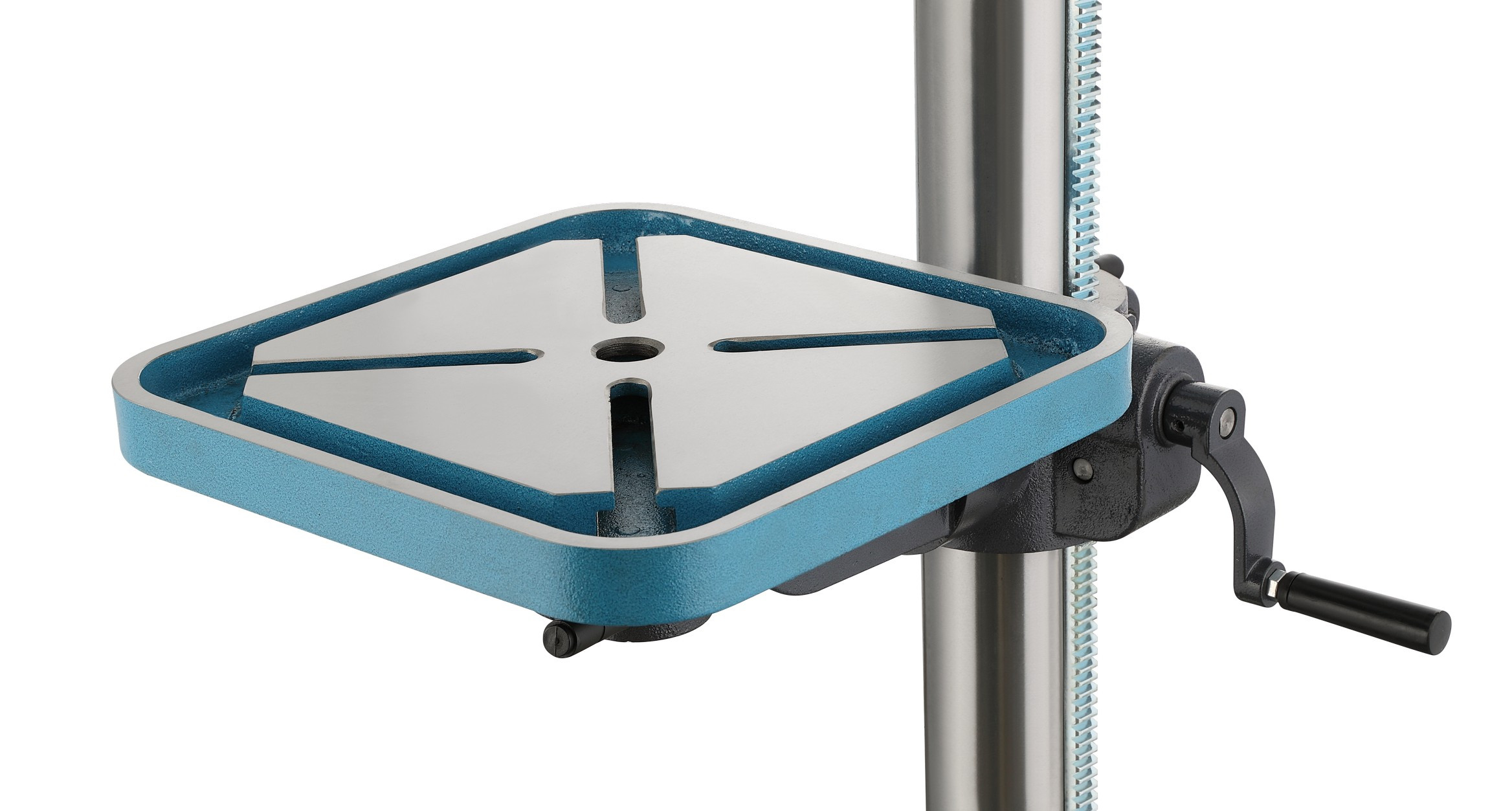

| Size of table (mm) | 315x315 |
| Size of base (mm) | 545x330 |
| Bench model | 1 |
| Height (mm) | 1635 |
| Max. load on table (kg) | 10 kg. |
| Net weight (kg) | 79 |
