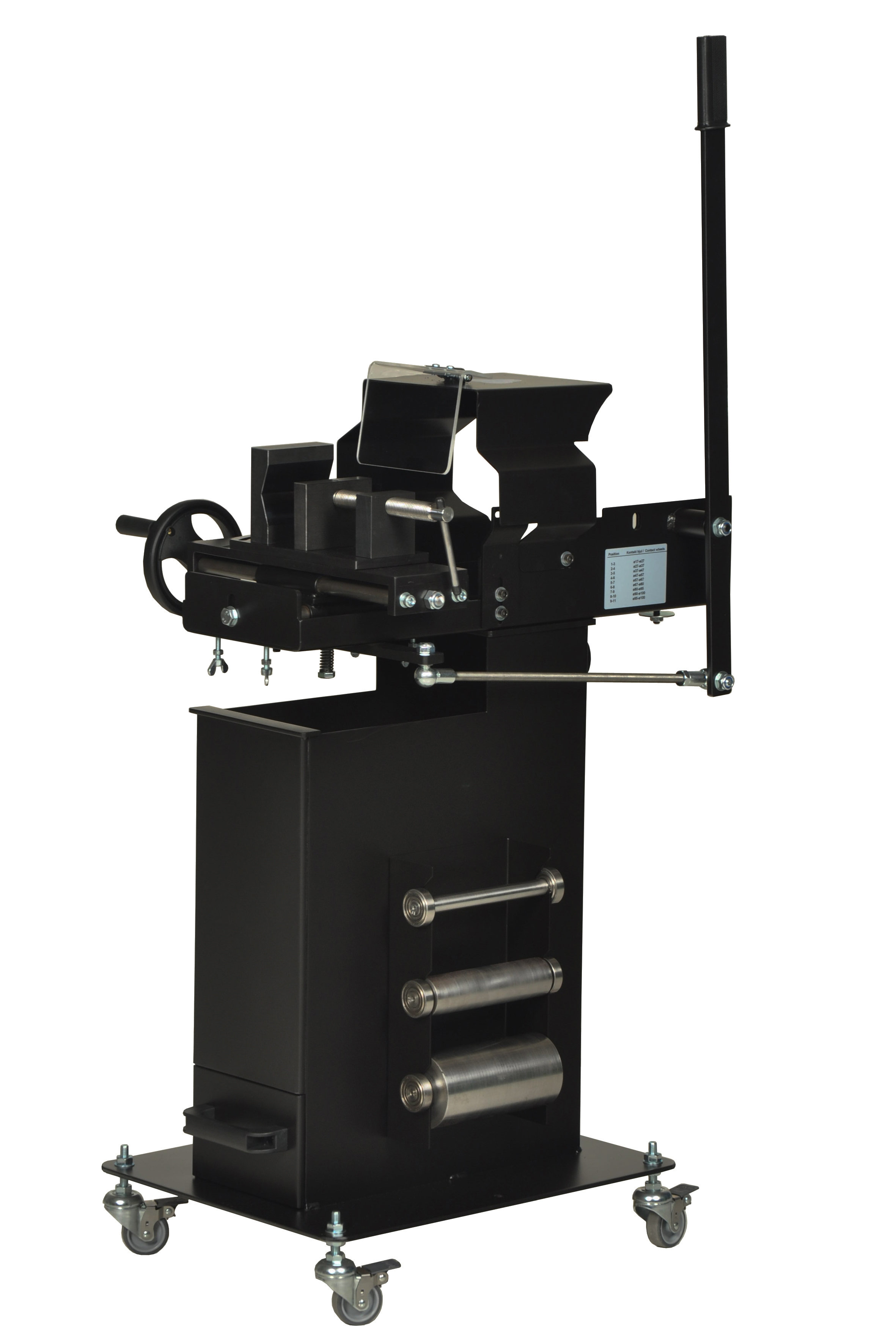

Belt grinder with pipe notching attachment

SCANTOOL 75RB

Item number: #430232145

Description

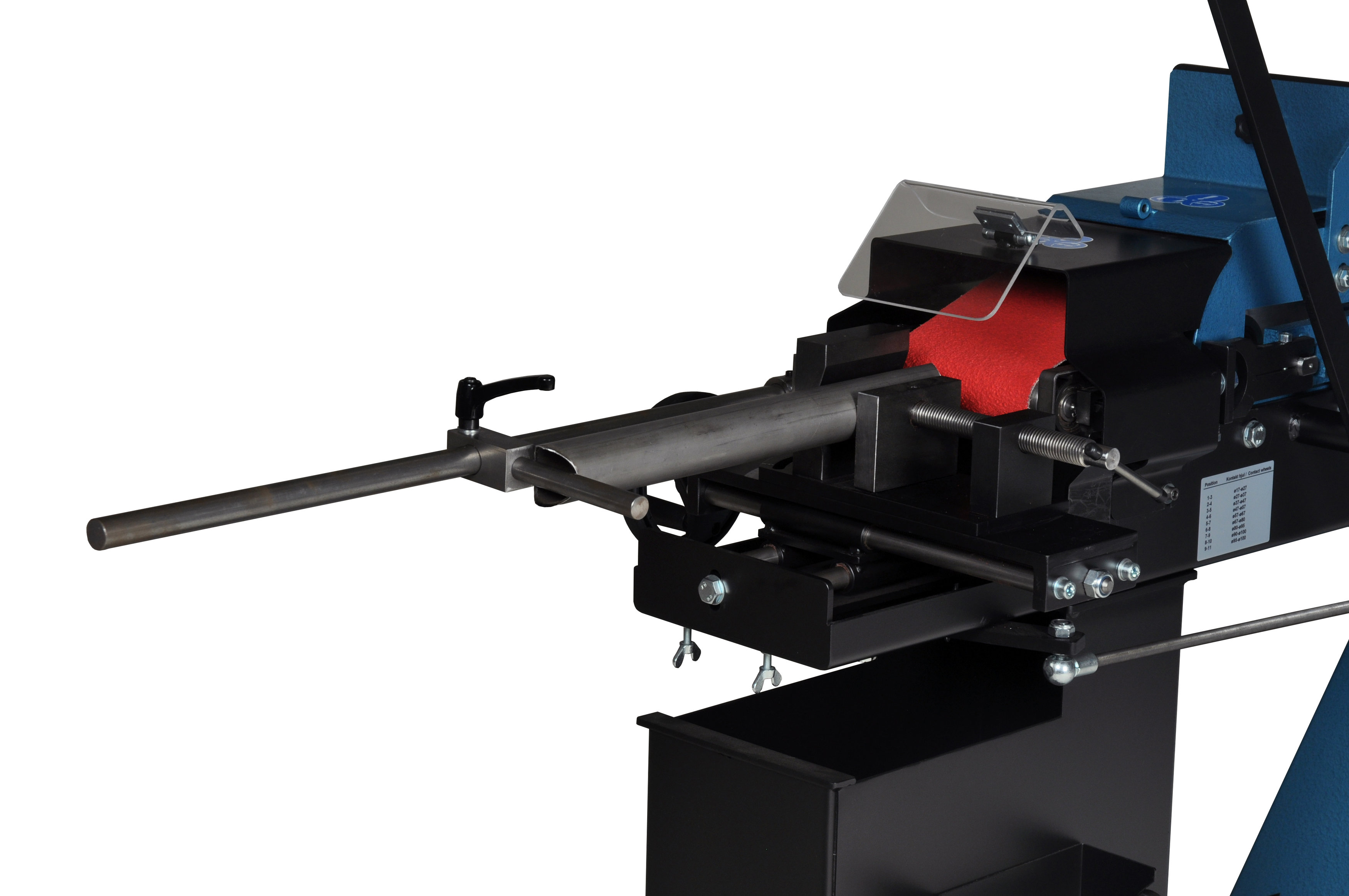

Scantool 75RB is, first and foremost, pipe notchers which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 100 mm.

However, the RB and RBX models are more than just efficient pipe grinders.

They can be converted into a normal belt sander in just minutes when all pipe grinding tasks are...
Read More >>

×

Product Specifications

Rpm 2800
Voltage 3x400V-50 Hz
Motor (HP) 4,1
Grinder Belt (mm) 75x2250
Saw speed (m/min) 30
Pipe dimension (ø mm) 17-70
Grinding table (mm) 75x605
Grinding angles 0-60°
Number of spindle speeds 1
On Pedestal 1
Length (mm) 1350
Without exhaust 1
Width (mm) 570
Height (mm) 1020
Net weight (kg) 116
