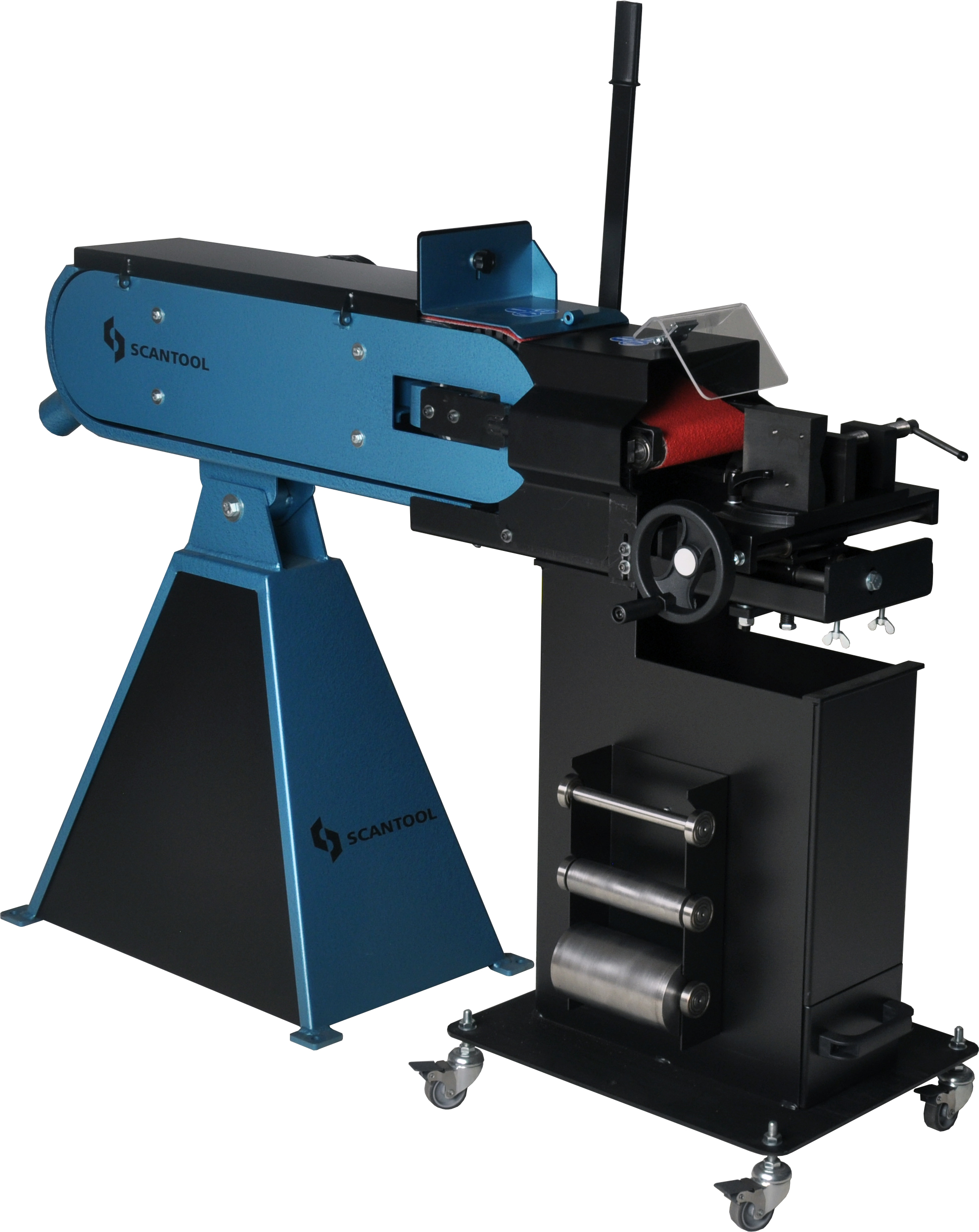

Belt grinder with pipe notching attachment

SCANTOOL 150RB

Item number: #430234156

Description

Scantool 150RB is, first and foremost, a pipe notcher which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 100 mm.

However, the RB models are more than just efficient pipe grinders.

They can be converted into a normal belt sander in just minutes when all pipe grinding tasks are finish...
Read More >>

×

Product Specifications

Rpm 2800
Voltage 3x400V-50 Hz
Motor (HP) 4,8
Grinder Belt (mm) 150x2250
Saw speed (m/min) 30
Pipe dimension (ø mm) 17-100
Grinding table (mm) 150x605
Grinding angles 0-60°
Number of spindle speeds 1
On Pedestal 1
Without exhaust 1
Length (mm) 1350
Width (mm) 570
Height (mm) 1020
Net weight (kg) 140
