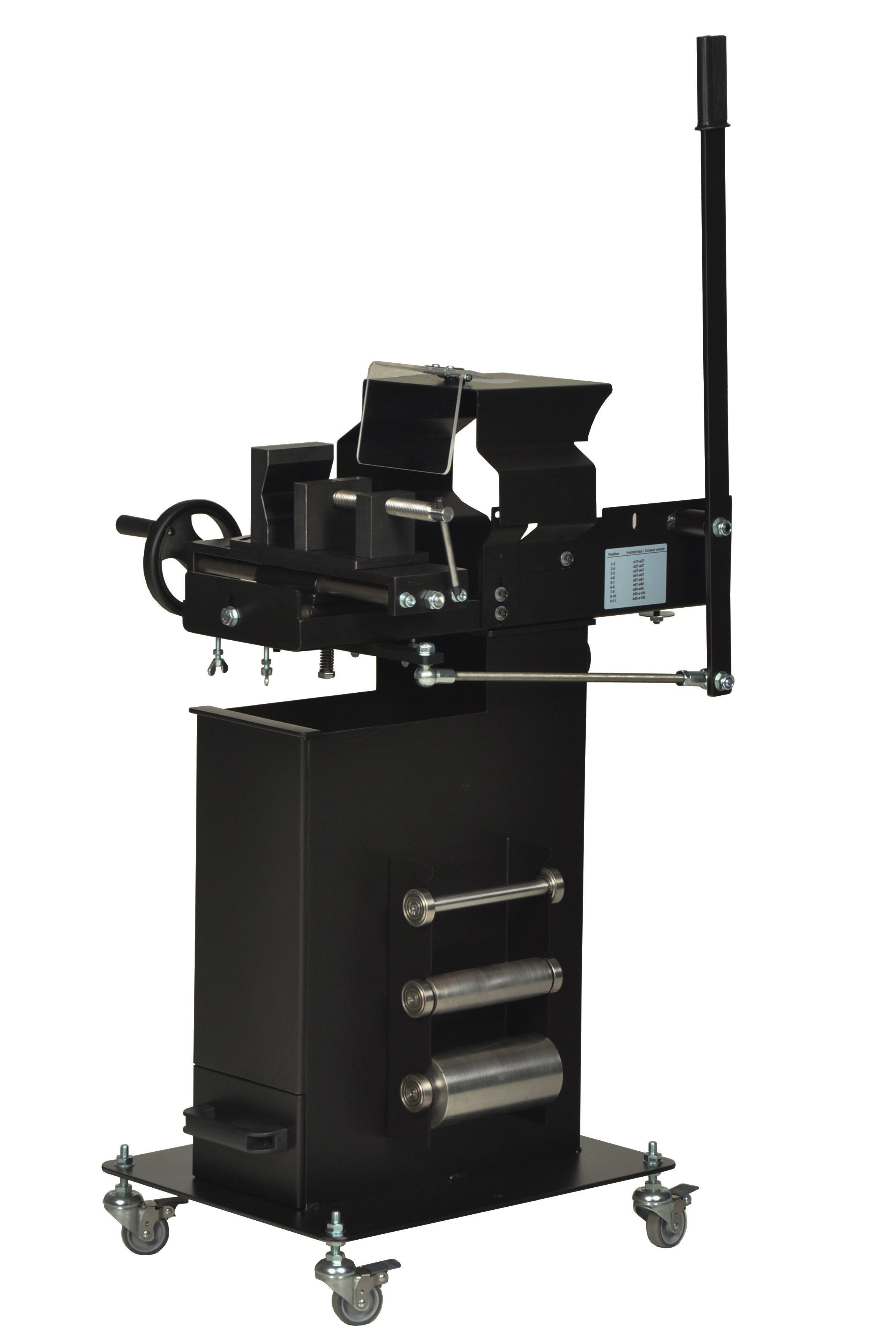

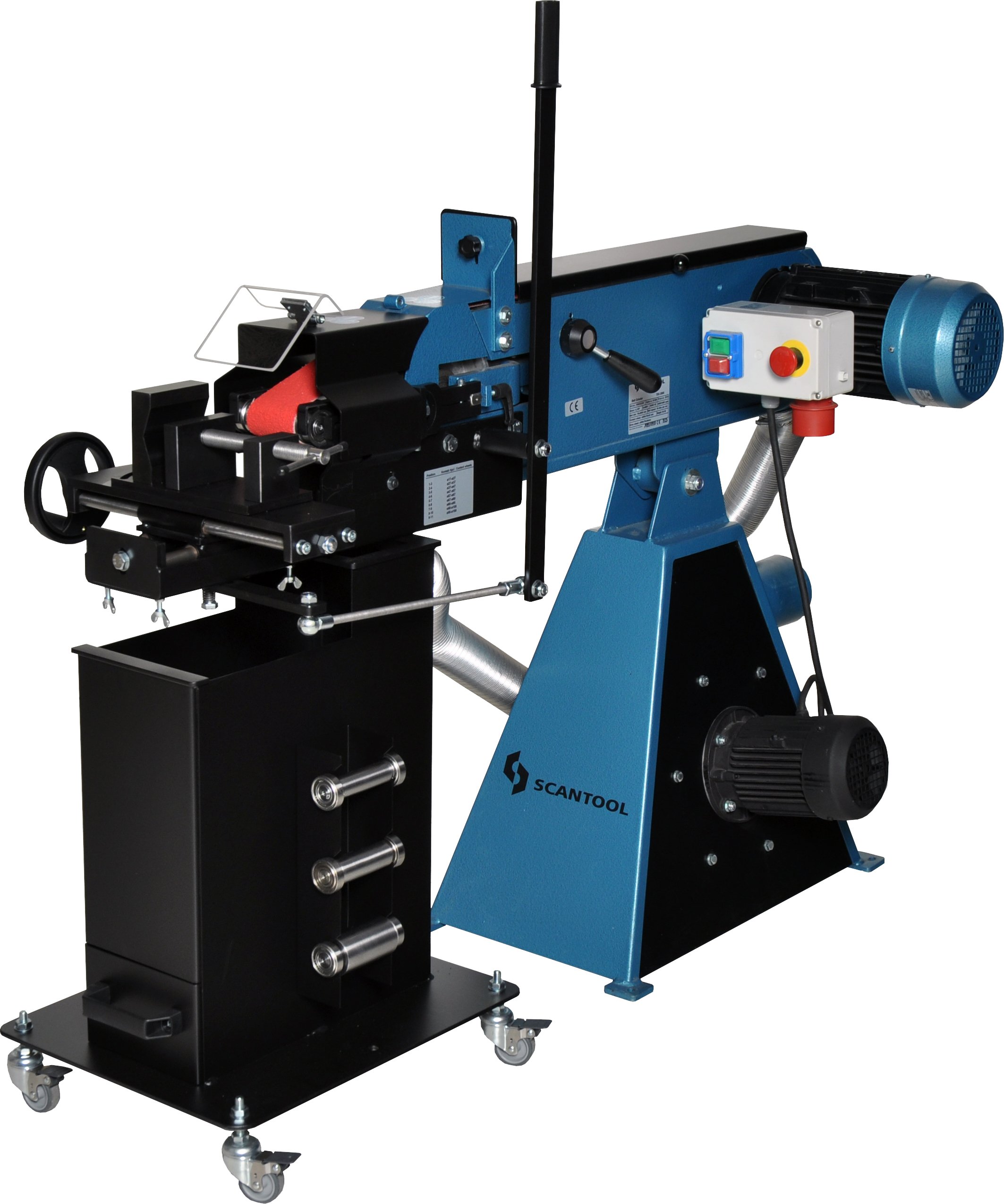

Belt grinder with pipe notching attachment

SCANTOOL 75RBX

Item number: #430232245

Description

Scantool 75RBX is, first and foremost, a pipe notcher which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 70 mm.

However, the RBX models are more than just efficient pipe grinders.

They can be converted into a normal belt sander in just minutes when all pipe grinding tasks are finish...
Read More >>

×

Product Specifications

Rpm 2800
Voltage 3x400V-50 Hz
Motor (HP) 4,1
Grinder Belt (mm) 75x2250
Saw speed (m/min) 30
Pipe dimension (ø mm) 17-70
Grinding table (mm) 75x605
Exhaust (m³/h) 630

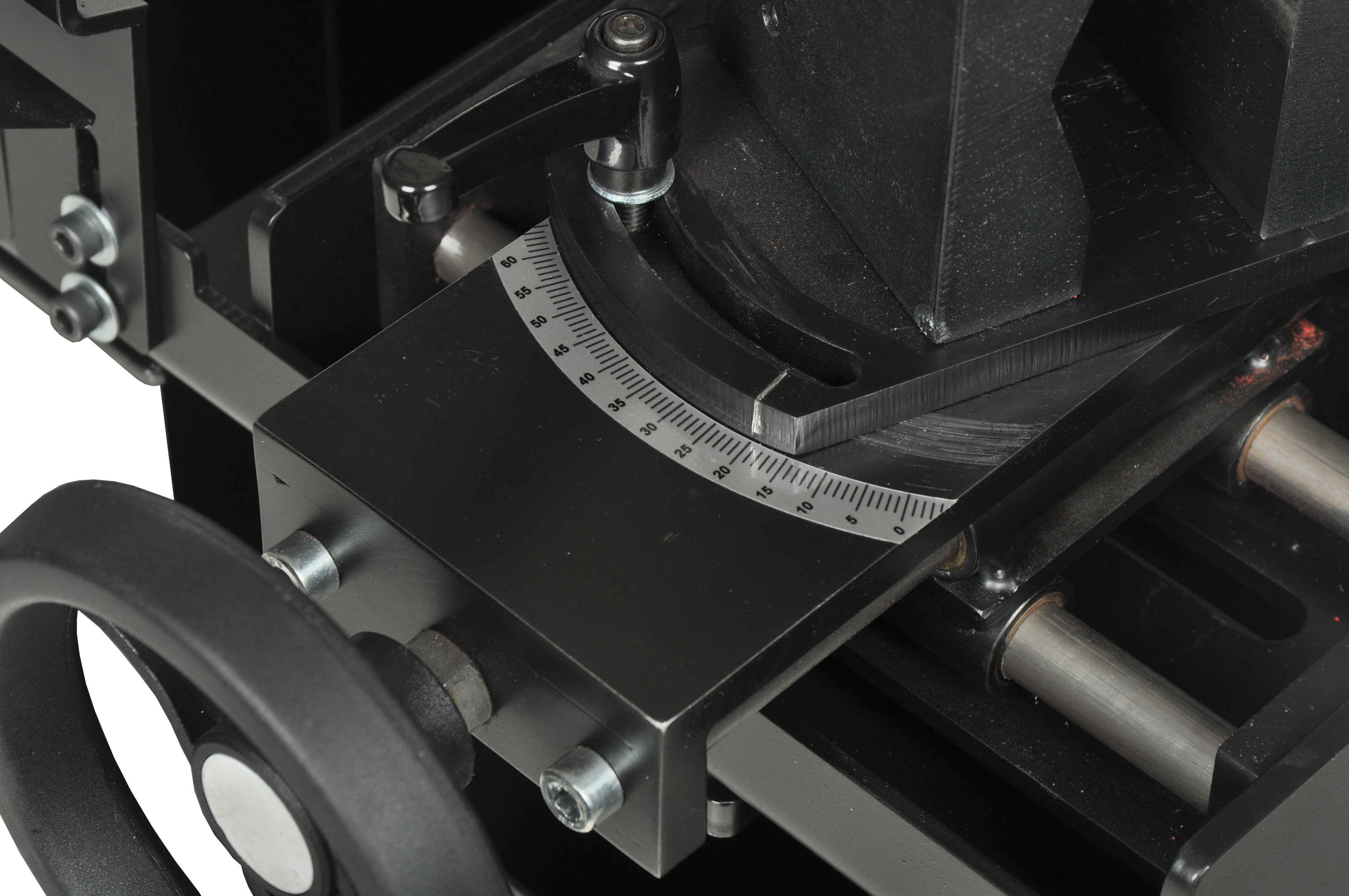

Grinding angles 0-60°
Number of spindle speeds 1
On Pedestal 1
With exhaust 1
Length (mm) 1350
Width (mm) 570
Height (mm) 1020
Net weight (kg) 130
