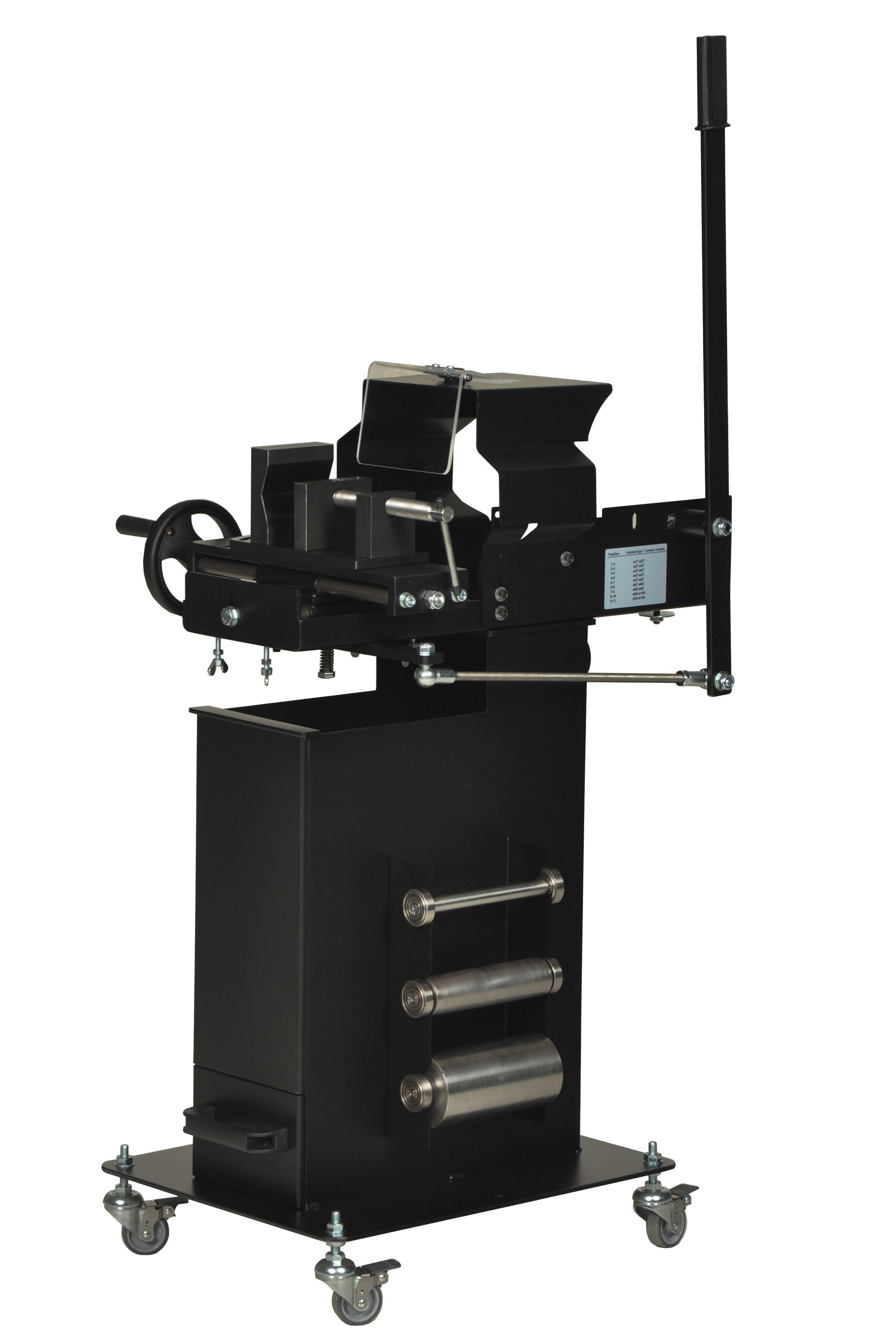

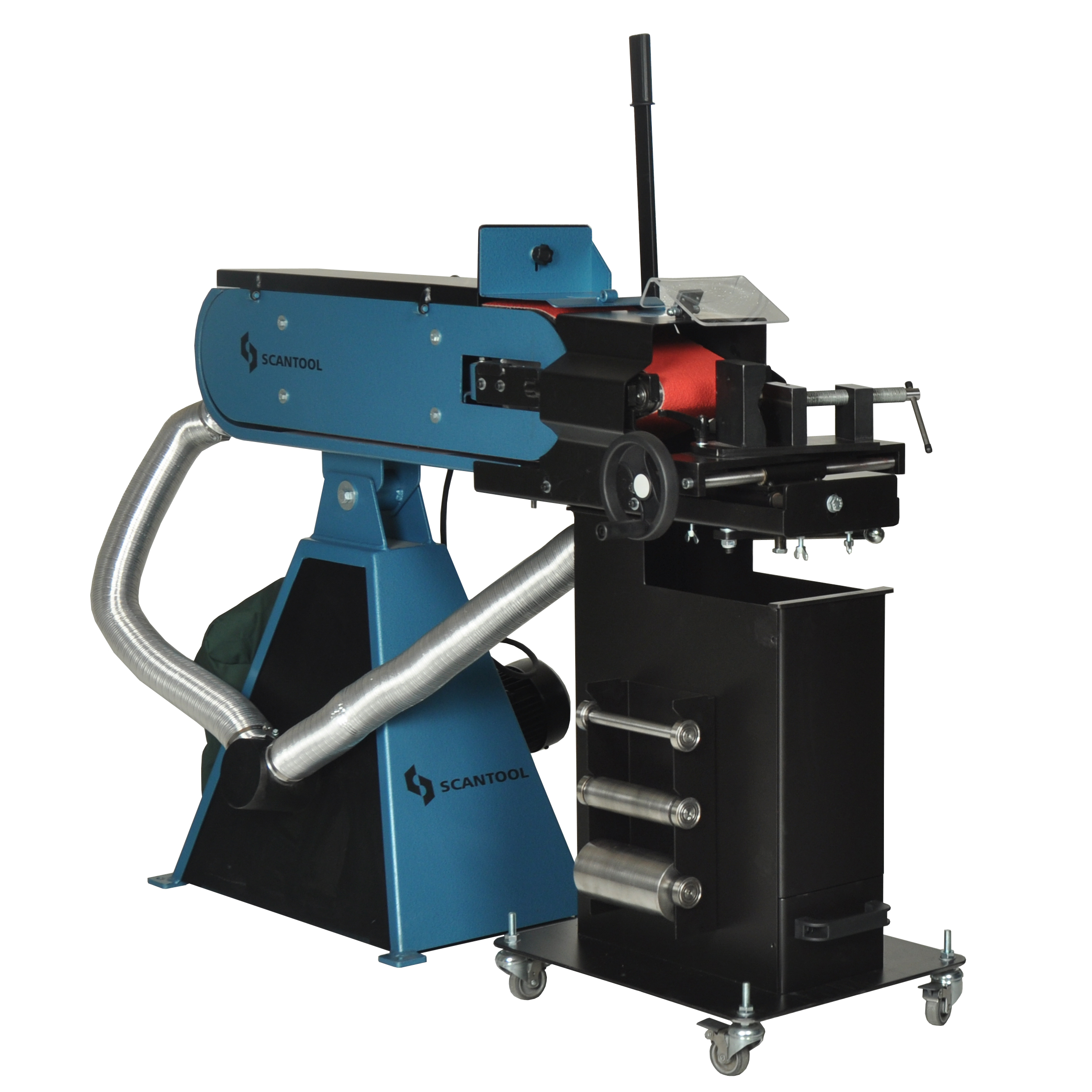

Belt grinder with pipe notching attachment

SCANTOOL 150RBX

Item number: #430234261

Description

Scantool 150RBX is, first and foremost, a pipe notchers which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 100 mm.

However, the RBX models are more than just efficient pipe grinders.

They can be converted into a normal belt sander in just minutes when all pipe grinding tasks are fin...
Read More >>

×

Product Specifications

Rpm 2800
Voltage 3x400V-50 Hz
Motor (HP) 4,8
Grinder Belt (mm) 150x2250
Saw speed (m/min) 30
Pipe dimension (ø mm) 17-100
Grinding table (mm) 150x605
Exhaust (m³/h) 600

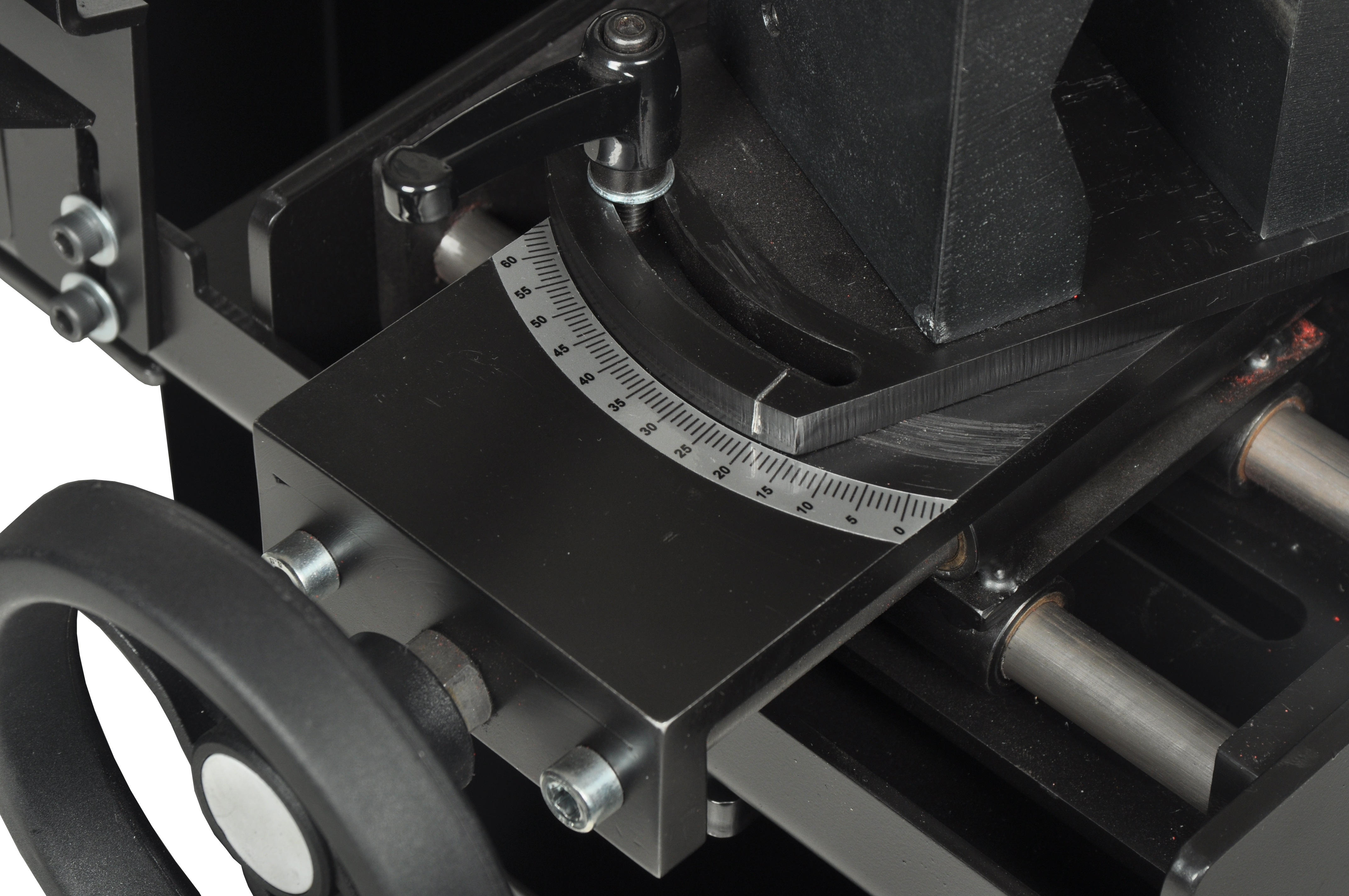

Grinding angles 0-60°
Number of spindle speeds 1
On Pedestal 1
With exhaust 1
Length (mm) 1350
Width (mm) 570
Height (mm) 1020
Net weight (kg) 154
